DSRV.4.080.050.30 IG3I

Recommended:

Also suitable for:

Material number DSRV408005030IG3I

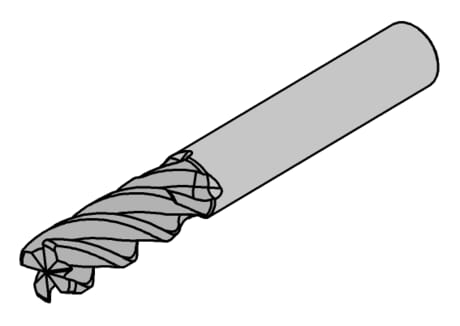

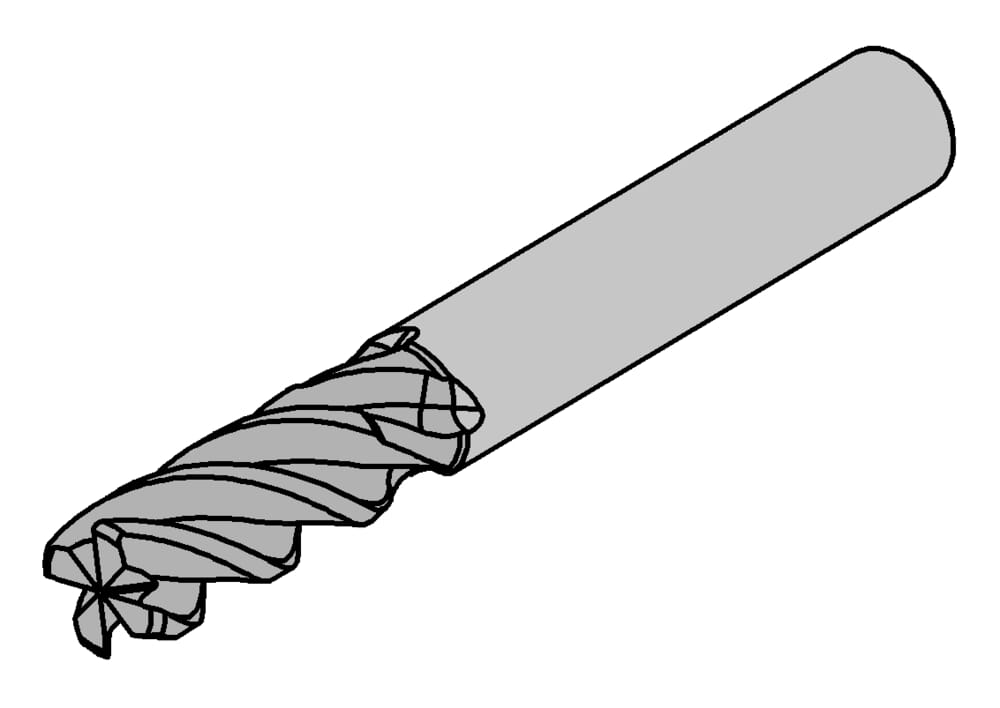

HORN DS-end mill Ø8 R0,5 3xØ Z4 DSRV.4.080.050.30 IG3I for Milling

Total length (l1)

2.48 ˝

63 mm

Effective cutting length (l2)

0.669 ˝

17 mm

Neck diameter (d3)

0.299 ˝

7.6 mm

Corner radius (r)

0.02 ˝

0.5 mm

us-cutting

Yes

tool-application

rotating

Cutting diameter (d1)

0.315 ˝

8 mm

Neck length (l3)

0.945 ˝

24 mm

Shank diameter (d2)

0.315 ˝

8 mm
