DSFT.4.050.010.20 TS3K
Recommended:
Also suitable for:
Material number DSFT405001020TS3K

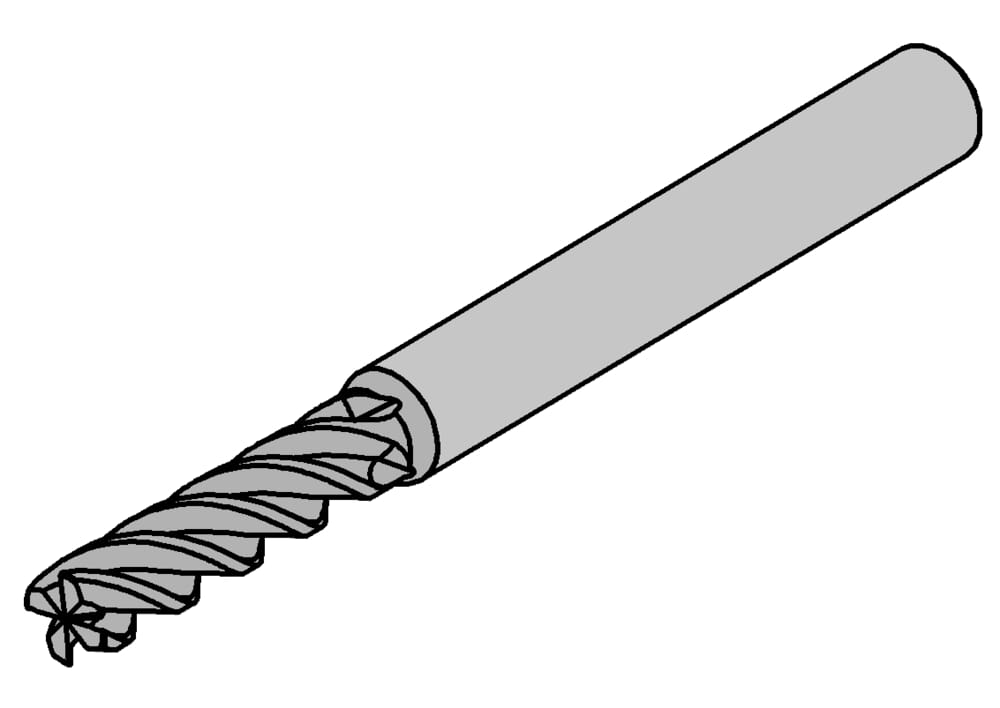

HORN DS Milling cutter Ø5 2xØ Z4 DSFT.4.050.010.20 TS3K for Milling
us-cutting
Yes
tool-application
rotating
Shank diameter (d2)
0.236 ˝
6 mm
Total length (l1)
1.969 ˝
50 mm
Effective cutting length (l2)
0.433 ˝
11 mm
Corner bevel (45 ° x b) (b)
0.1
Cutting diameter (d1)
0.197 ˝
5 mm
| Downloads | |
|---|---|
| DSFT_4_050_010_20_TS3K-ISO.XML | Download |
| DSFT_4_050_010_20_TS3K-DIN.XML | Download |
| Download all files | |
