DSFT.4.030.010.40 TS3K
Recommended:
Also suitable for:
Material number DSFT403001040TS3K

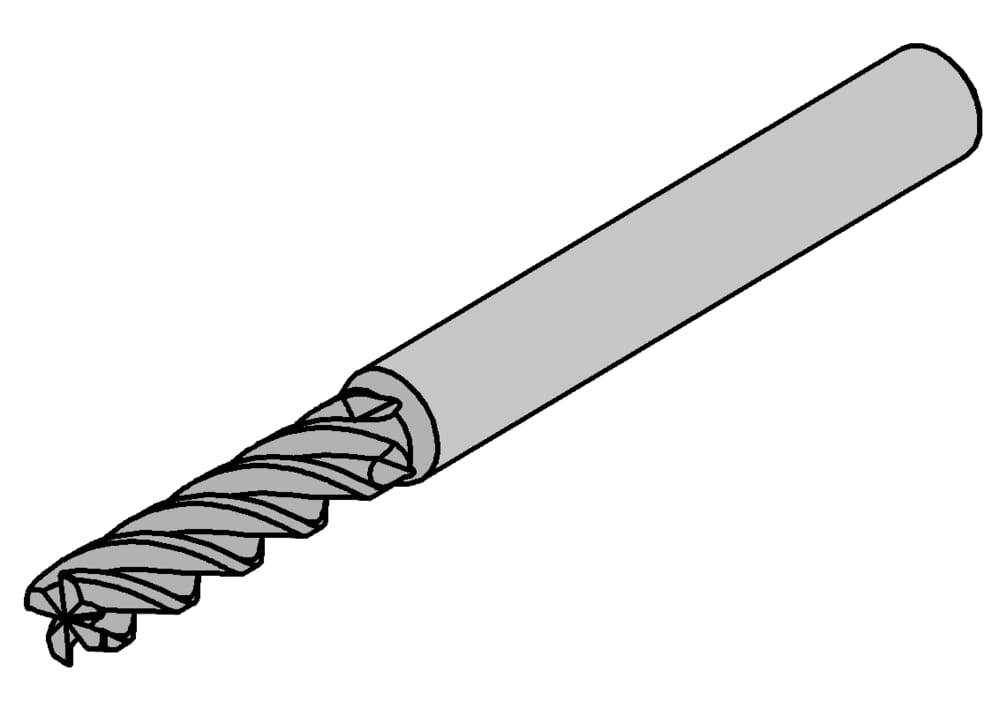

HORN DS-end mill Ø3 4xØ Z4 DSFT.4.030.010.40 TS3K for Milling
Total length (l1)
2.244 ˝
57 mm
us-cutting
Yes
tool-application
rotating
Shank diameter (d2)
0.236 ˝
6 mm
Effective cutting length (l2)
0.512 ˝
13 mm
Corner bevel (45 ° x b) (b)
0.004 ˝
0.1 mm
Cutting diameter (d1)
0.118 ˝
3 mm
