DSFT.4.020.010.40 TS3K
Recommended:
Also suitable for:
Material number DSFT402001040TS3K

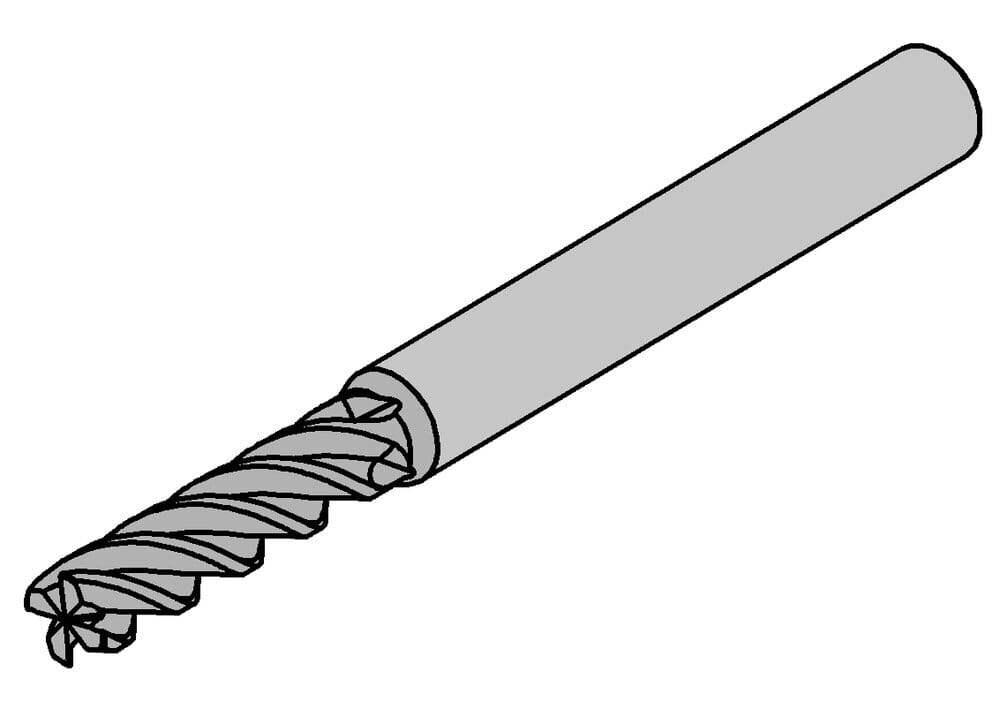

HORN DS-end mill Ø2 4xØ Z4 DSFT.4.020.010.40 TS3K for Milling
Total length (l1)
2.126 ˝
54 mm
us-cutting
Yes
cutting
1
tool-application
rotating
Shank diameter (d2)
0.236 ˝
6 mm
Effective cutting length (l2)
0.354 ˝
9 mm
Corner bevel (45 ° x b) (b)
0.004 ˝
0.1 mm
Cutting diameter (d1)
0.079 ˝
2 mm
| Downloads | |
|---|---|
| DSFT_4_020_010_40_TS3K-ISO.XML | Download |
| DSFT_4_020_010_40_TS3K-DIN.XML | Download |
| Download all files | |
