DSFT.4.020.010.30 TS3K
Recommended:
Also suitable for:
Material number DSFT402001030TS3K

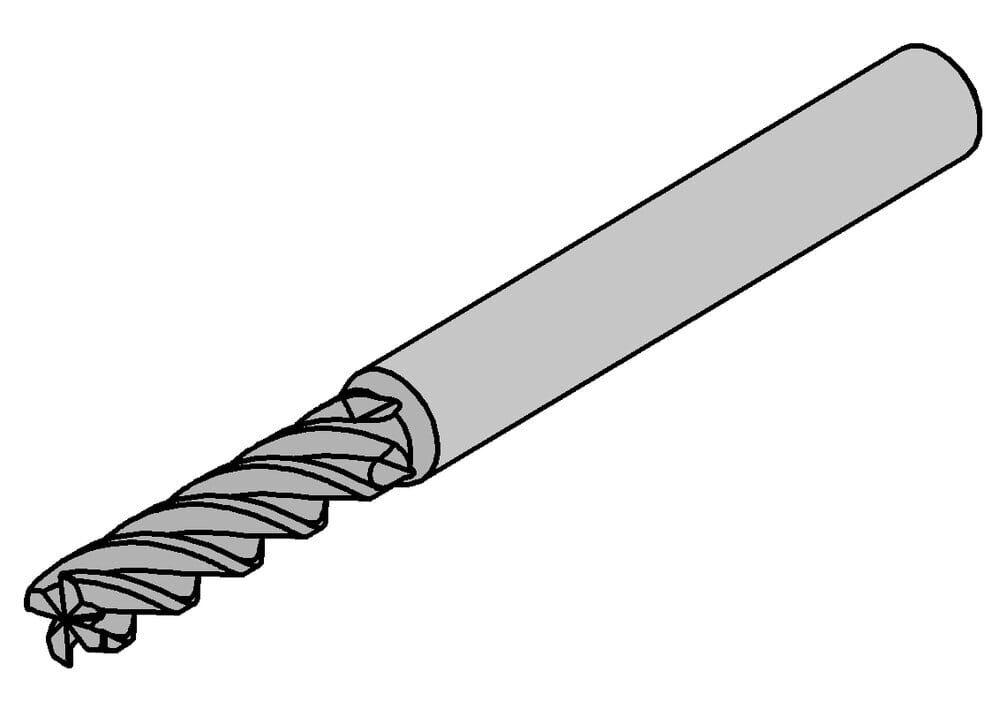

HORN DS-end mill Ø2 3xØ Z4 DSFT.4.020.010.30 TS3K for Milling
us-cutting
Yes
tool-application
rotating
Shank diameter (d2)
0.236 ˝
6 mm
Total length (l1)
1.969 ˝
50 mm
Effective cutting length (l2)
0.276 ˝
7 mm
Corner bevel (45 ° x b) (b)
0.1
Cutting diameter (d1)
0.079 ˝
2 mm
| Downloads | |
|---|---|
| DSFT_4_020_010_30_TS3K-ISO.XML | Download |
| DSFT_4_020_010_30_TS3K-DIN.XML | Download |
| Download all files | |
