DM90.R063.14.05.2A PD45
Material number DM90R06314052APD45

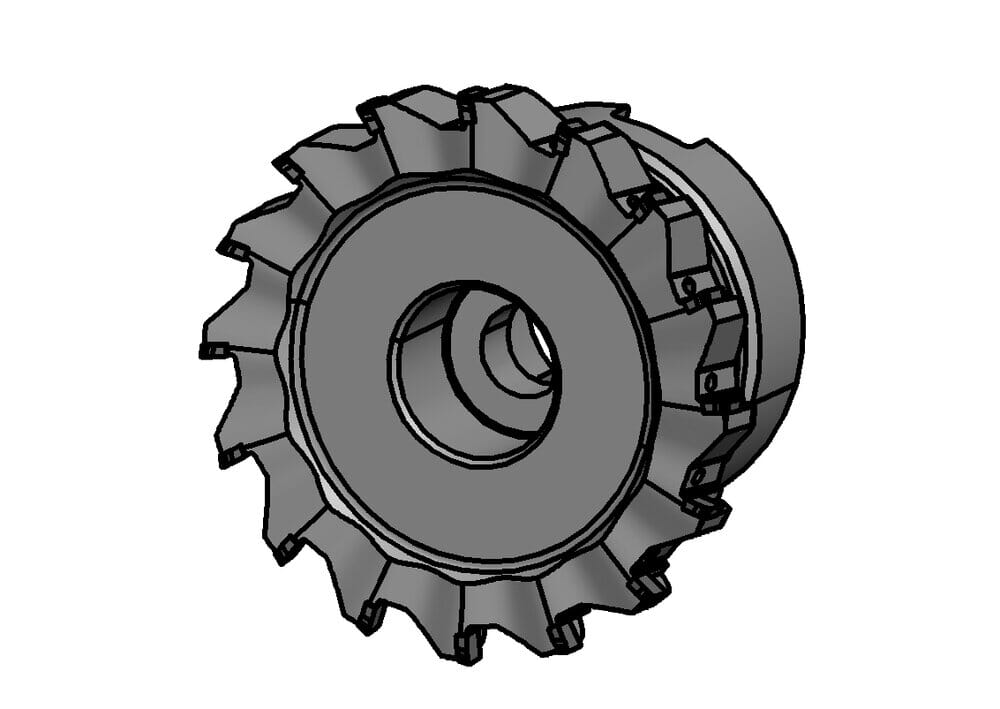

HORN Face mill PCD tipped DM90.R063.14.05.2A PD45 for Milling
Neck diameter (d3)
1.85 ˝
47 mm
us-cutting
Yes
Total length (l1)
1.575 ˝
40 mm
Effective cutting length (l2)
0.197 ˝
5 mm
Mounting hole diameter (d2)
0.866 ˝
22 mm
Corner radius (r)
0.016 ˝
0.4 mm
tool-application
rotating
Cutting diameter (d1)
2.48 ˝
63 mm
| Downloads | |
|---|---|
| DM90_R063_14_05_2A_PD45-DXF.DXF | Download |
| DM90_R063_14_05_2A_PD45-ISO.XML | Download |
| DM90_R063_14_05_2A_PD45-DIN.XML | Download |
| DM90_R063_14_05_2A_PD45-STP.STP | Download |
| Download all files | |
