DM33.V16.30.130.1A PD42
Material number DM33V16301301APD42

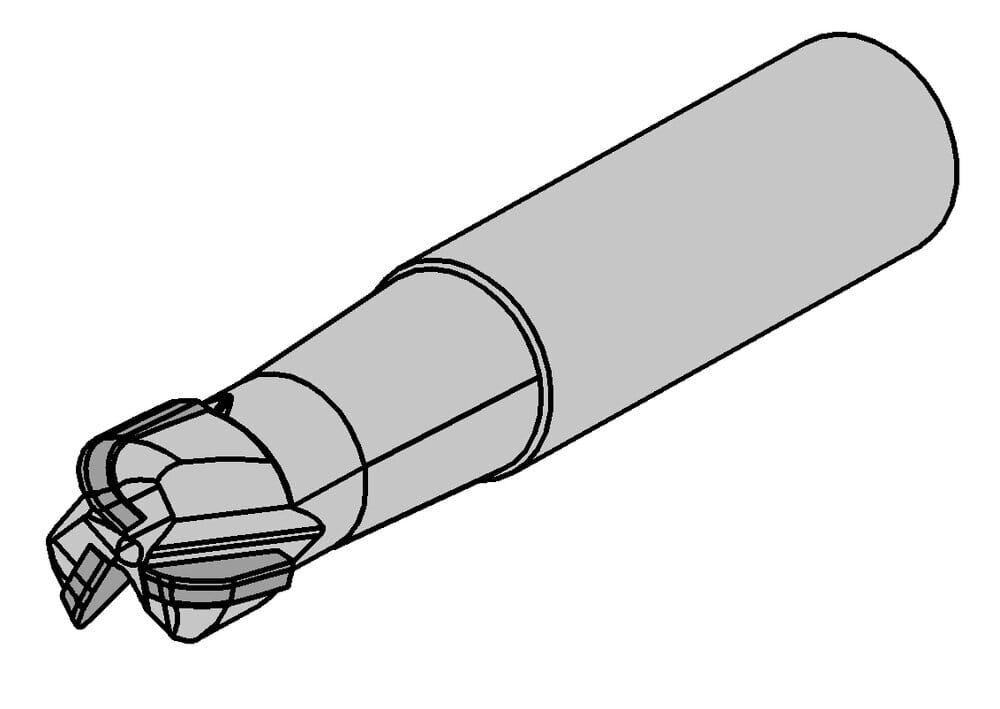

HORN DM33.V16.30.130.1A PD42 for Milling
Corner radius (mm) (r)
0.118 ˝
3 mm
Total length (l1)
5.118 ˝
130 mm
Effective cutting length (l2)
0.394 ˝
10 mm
us-cutting
Yes
tool-application
rotating
Cutting diameter (d1)
0.63 ˝
16 mm
Neck length (l3)
3.15 ˝
80 mm
Shank diameter (d2)
0.63 ˝
16 mm
| Downloads | |
|---|---|
| DM33_V16_30_130_1A_PD42-DXF.DXF | Download |
| DM33_V16_30_130_1A_PD42-STP.STP | Download |
| DM33_V16_30_130_1A_PD42-ISO.XML | Download |
| DM33_V16_30_130_1A_PD42-DIN.XML | Download |
| Download all files | |
