DM25.C06.01.3.08.0F PD45
Material number DM25C06013080FPD45

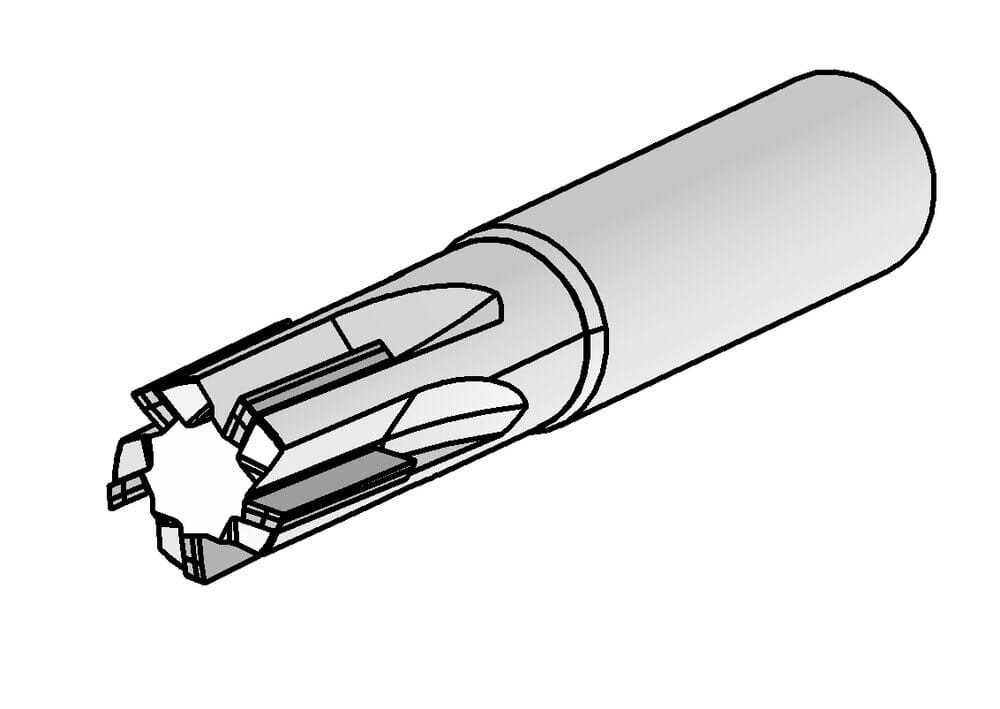

HORN End Mill PCD tipped DM25.C06.01.3.08.0F PD45 for Milling
tool-application
rotating
us-cutting
Yes
Total length (l1)
2.362 ˝
60 mm
Effective cutting length (l2)
0.315 ˝
8 mm
Corner bevel (45 ° x b) (b x 45°)
0.004 ˝
0.1 mm
Cutting diameter (d1)
0.236 ˝
6 mm
Neck length (l3)
0.787 ˝
20 mm
Shank diameter (d2)
0.236 ˝
6 mm
| Downloads | |
|---|---|
| DM25_C06_01_3_08_0F_PD45-DXF.DXF | Download |
| DM25_C06_01_3_08_0F_PD45-STP.STP | Download |
| DM25_C06_01_3_08_0F_PD45-ISO.XML | Download |
| DM25_C06_01_3_08_0F_PD45-DIN.XML | Download |
| Download all files | |
