DCR.3.60.10.05.1.06 RC45
Recommended:
Also suitable for:
Material number DCR3601005106RC45

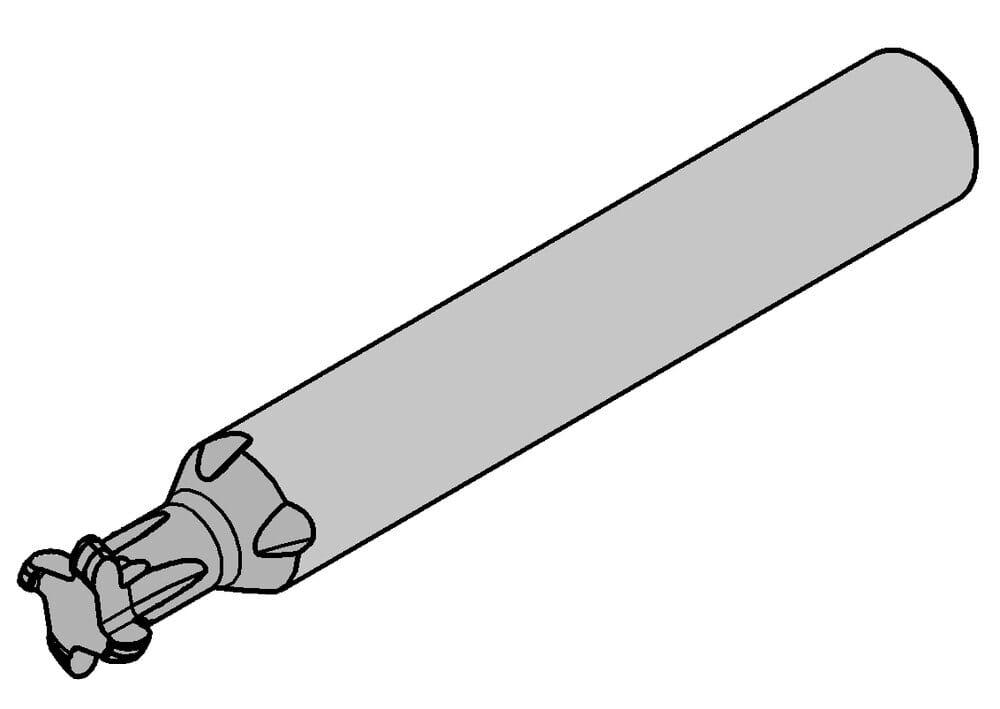

HORN DCR.3.60.10.05.1.06 RC45 for Milling
Maximum milling depth/ depth of groove (tmax)
0.039 ˝
1 mm
cutting-width-met
0.039 ˝
1 mm
Neck diameter (d3)
0.146 ˝
3.7 mm
Radius, full-radius (r)
0.02 ˝
0.5 mm
Total length (l1)
1.969 ˝
50 mm
smallest-bore-diameter-met
0.236 ˝
6 mm
tool-application
rotating
Shank, clamping length (l4)
1.417 ˝
36 mm
Width of groove (inch) (w)
0.039 ˝
1 mm
Cutting diameter (d1)
0.236 ˝
6 mm
Neck length (l3)
0.157 ˝
4 mm
Shank diameter (d2)
0.236 ˝
6 mm
| Downloads | |
|---|---|
| DCR_3_60_10_05_1_06_RC45-DIN.XML | Download |
| DCR_3_60_10_05_1_06_RC45-DXF.DXF | Download |
| DCR_3_60_10_05_1_06_RC45-STP.STP | Download |
| DCR_3_60_10_05_1_06_RC45-ISO.XML | Download |
| Download all files | |
