DCR.3.50.10.05.2.06 RC45

Recommended:

Also suitable for:

Material number DCR3501005206RC45

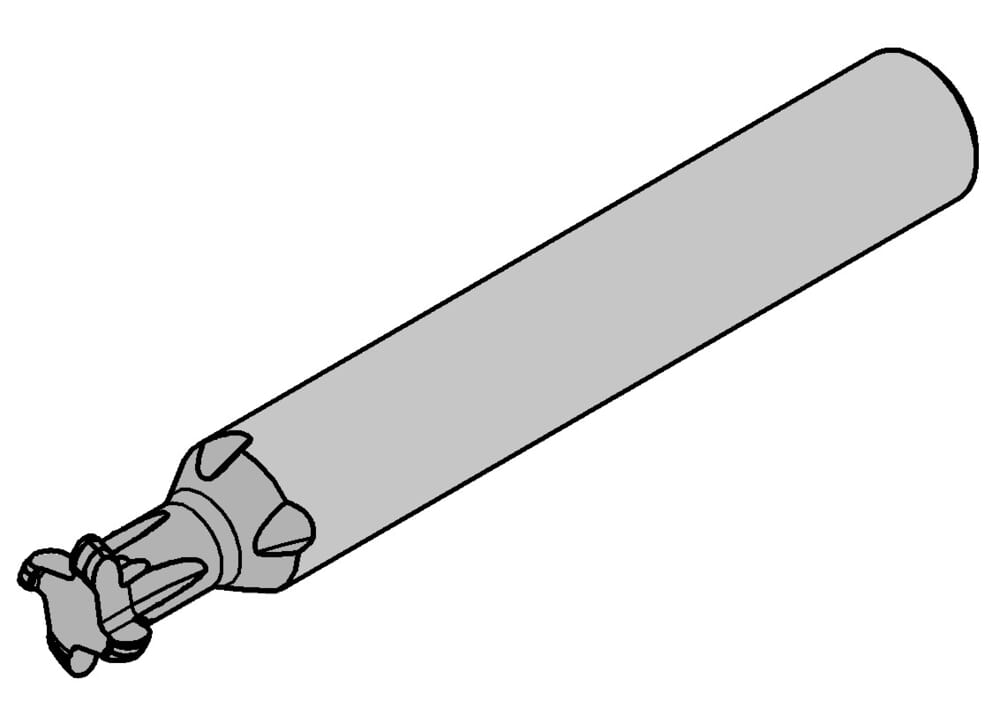

HORN DC Slot Cutter Toolholder DCR.3.50.10.05.2.06 RC45 for Milling

Maximum milling depth/ depth of groove (tmax)

0.03 ˝

0.75 mm

cutting-width-met

0.039 ˝

1 mm

Neck diameter (d3)

0.126 ˝

3.2 mm

Radius, full-radius (r)

0.02 ˝

0.5 mm

Total length (l1)

1.969 ˝

50 mm

smallest-bore-diameter-met

0.197 ˝

5 mm

tool-application

rotating

Shank, clamping length (l4)

1.417 ˝

36 mm

Width of groove (inch) (w)

0.039 ˝

1 mm

Cutting diameter (d1)

0.197 ˝

5 mm

Neck length (l3)

0.236 ˝

6 mm

Shank diameter (d2)

0.236 ˝

6 mm
