DCN.3.60.15.15.2.06 RC45

Recommended:

Also suitable for:

Material number DCN3601515206RC45

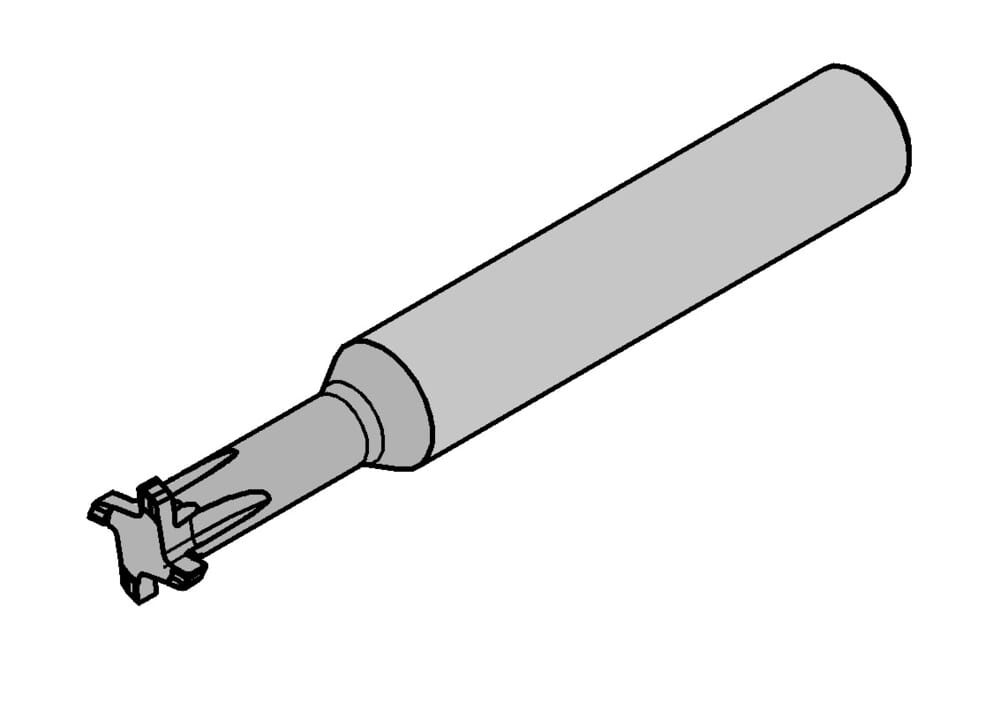

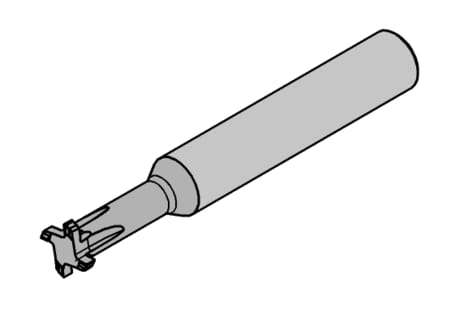

HORN DC Slot Cutter Toolholder DCN.3.60.15.15.2.06 RC45 for Milling

Maximum milling depth/ depth of groove (tmax)

0.047 ˝

1.2 mm

cutting-width-met

0.059 ˝

1.5 mm

Neck diameter (d3)

0.13 ˝

3.3 mm

Corner radius (r)

0.006 ˝

0.15 mm

Total length (l1)

2.48 ˝

63 mm

smallest-bore-diameter-met

0.236 ˝

6 mm

tool-application

rotating

Shank, clamping length (l4)

1.417 ˝

36 mm

Width of groove (inch) (w)

0.059 ˝

1.5 mm

Cutting diameter (d1)

0.236 ˝

6 mm

Neck length (l3)

0.236 ˝

6 mm

Shank diameter (d2)

0.236 ˝

6 mm
