DCG.4.M8.125.6.1.08 RC45

Recommended:

Also suitable for:

Material number DCG4M81256108RC45

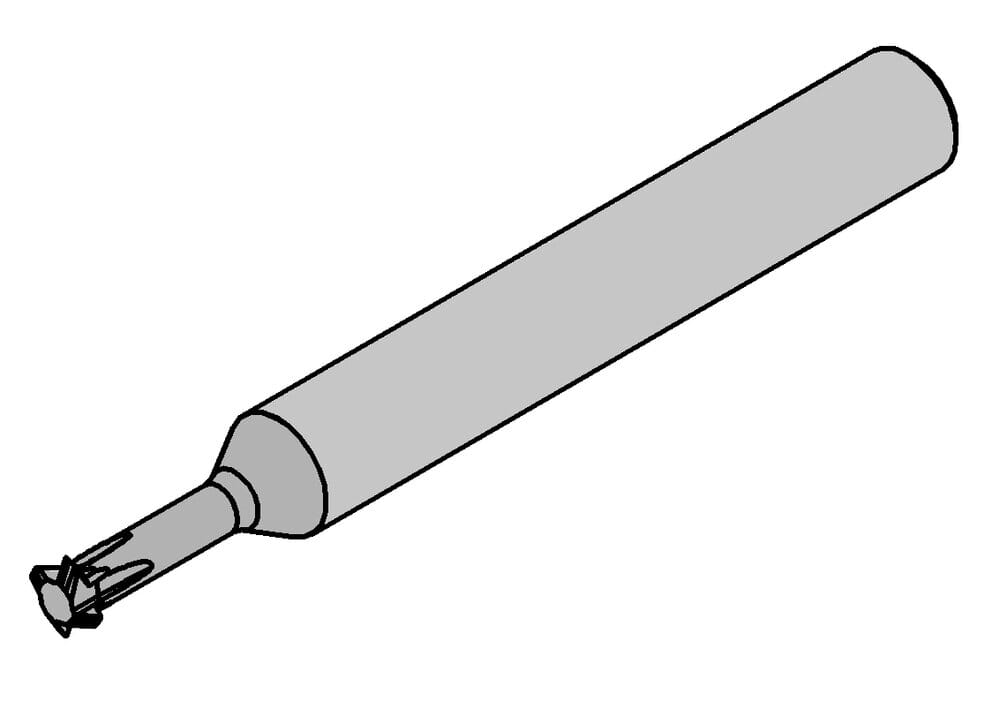

HORN DC Slot Cutter Toolholder DCG.4.M8.125.6.1.08 RC45 for Milling

Neck diameter (d3)

0.134 ˝

3.4 mm

Maximum pitch (Pmax)

0.059 ˝

1.5 mm

Pitch (P)

0.049 ˝

1.25 mm

Total length (l1)

2.48 ˝

63 mm

milling-depth-groove-depth-max-imp

0.035 ˝

0.9 mm

tool-application

rotating

Shank, clamping length (l4)

1.417 ˝

36 mm

Cutting diameter (d1)

0.217 ˝

5.5 mm

Neck length (l3)

0.787 ˝

20 mm

Shank diameter (d2)

0.315 ˝

8 mm
