DCG.4.M6.100.5.1.06 RC45

Material number DCG4M61005106RC45

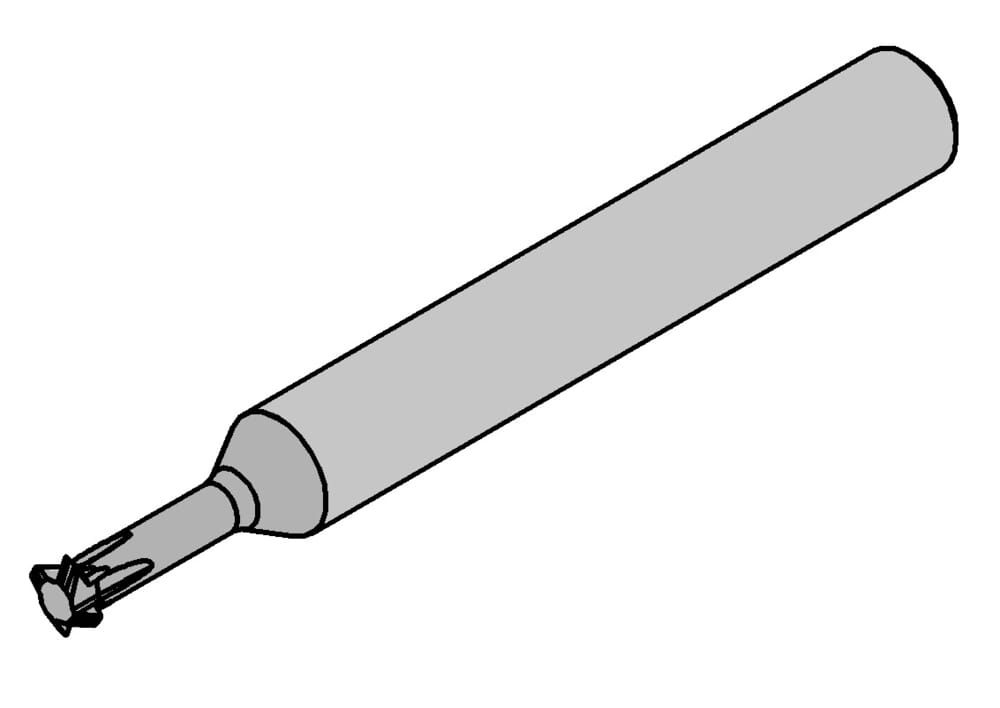

HORN DC Slot Cutter Toolholder DCG.4.M6.100.5.1.06 RC45 for Milling

tool-application

rotating

Maximum pitch (Pmax)

0.049 ˝

1.25 mm

Pitch (P)

0.039 ˝

1 mm

Total length (l1)

2.48 ˝

63 mm

milling-depth-groove-depth-max-imp

0.031 ˝

0.8 mm

Neck diameter (d3)

0.094 ˝

2.4 mm

Shank, clamping length (l4)

1.417 ˝

36 mm

Cutting diameter (d1)

0.165 ˝

4.2 mm

Neck length (l3)

0.63 ˝

16 mm

Shank diameter (d2)

0.236 ˝

6 mm
