DCF.4.100.4545.8.10 RC45

Material number DCF41004545810RC45

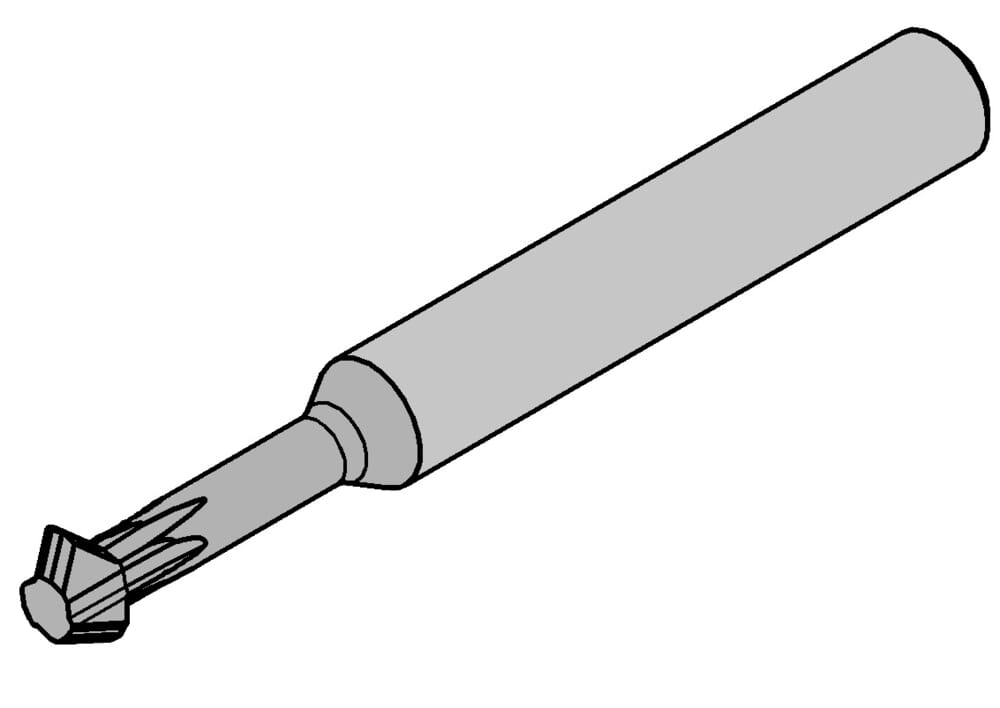

HORN DC Slot Cutter Toolholder DCF.4.100.4545.8.10 RC45 for Milling

Shank, clamping length (l4)

1.575 ˝

40 mm

Total length (l1)

3.937 ˝

100 mm

Maximum milling depth/ depth of groove (tmax)

0.079 ˝

2 mm

Neck diameter (d3)

0.224 ˝

5.7 mm

Width of groove (mm) (w)

0.008 ˝

0.2 mm

Chamfer (Fase)

45 °

tool-application

rotating

Cutting diameter (d1)

0.394 ˝

10 mm

Neck length (l3)

1.969 ˝

50 mm

Shank diameter (d2)

0.394 ˝

10 mm

DA Milling cutter

DA31020A00SA4B
