DAM65.100.A32.11

Material number DAM65100A3211

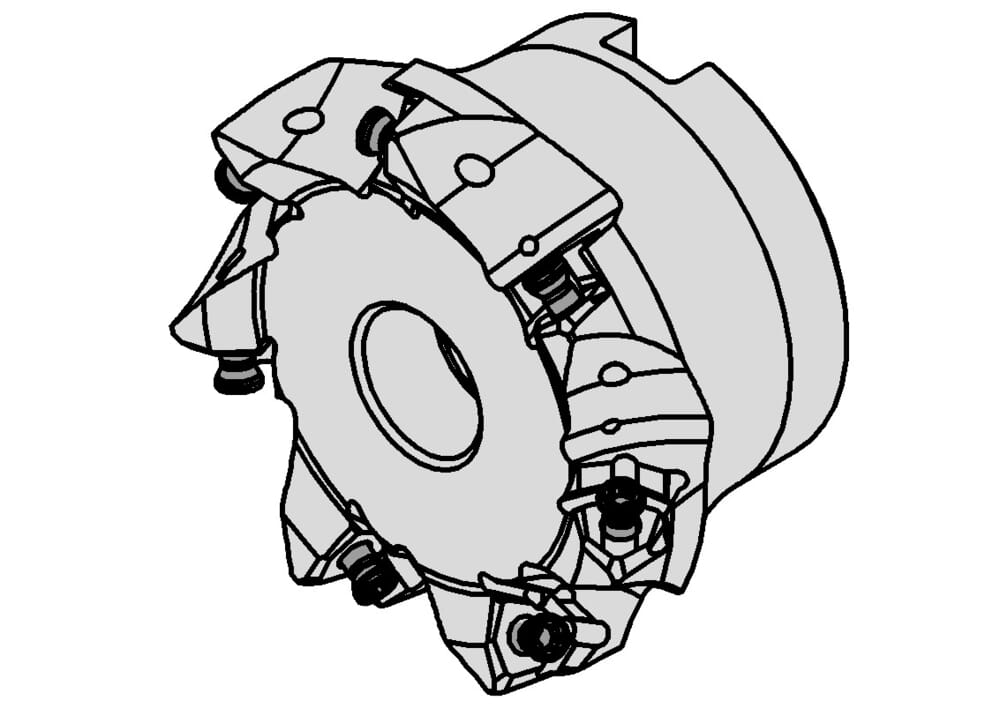

HORN Toolholder Endmill DAM65.100.A32.11 for Milling

Length from stop to base fastening screw head (l2)

1.13 ˝

28.7 mm

Width carrier cross groove (b)

0.567 ˝

14.4 mm

Depth carrier cross groove (C)

0.315 ˝

8 mm

Maximum stepover (ap) (ap)

0.276 ˝

7 mm

Miller length with indexable insert (h)

1.969 ˝

50 mm

Miller length without indexable insert (h2)

1.89 ˝

48 mm

Lowering for mounting screw head (d5)

1.378 ˝

35 mm

Mounting hole diameter (d2)

1.26 ˝

32 mm

Diameter of the mandrel (dK)

3.15 ˝

80 mm

us-cutting

Katalog_CCTWS

DA6500

tool-application

rotating

Cutting diameter (Ds)

3.937 ˝

100 mm
