DAM65.063.A22.05

Material number DAM65063A2205

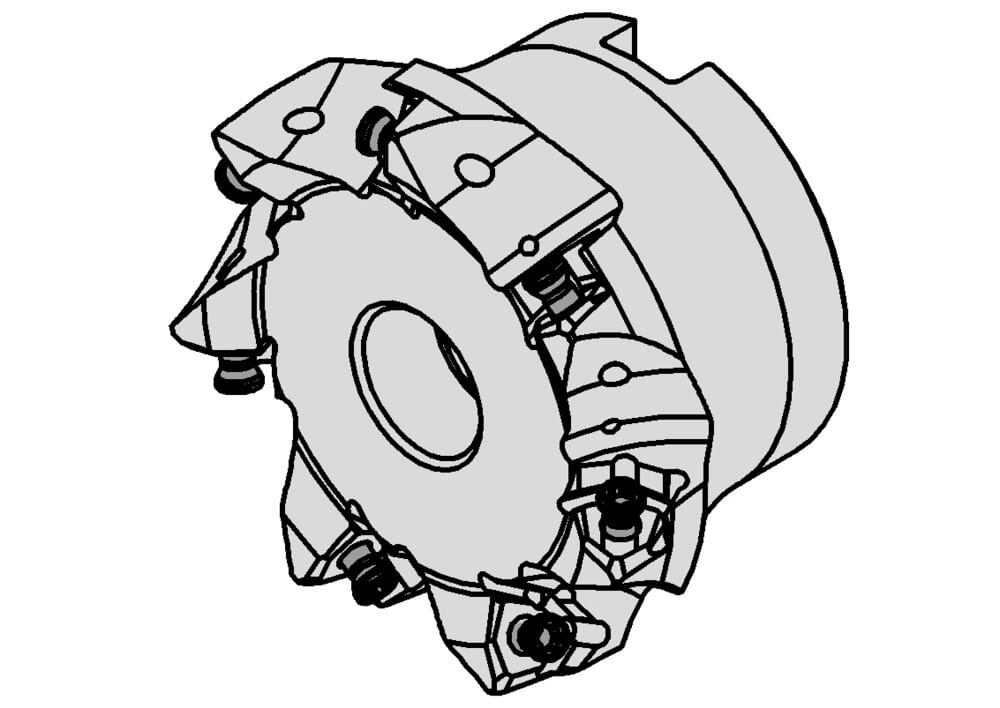

HORN Toolholder Endmill DAM65.063.A22.05 for Milling

Length from stop to base fastening screw head (l2)

0.874 ˝

22.2 mm

Width carrier cross groove (b)

0.409 ˝

10.4 mm

Depth carrier cross groove (C)

0.248 ˝

6.3 mm

Maximum stepover (ap) (ap)

0.276 ˝

7 mm

Miller length with indexable insert (h)

1.575 ˝

40 mm

Miller length without indexable insert (h2)

1.496 ˝

38 mm

Lowering for mounting screw head (d5)

0.768 ˝

19.5 mm

Mounting hole diameter (d2)

0.866 ˝

22 mm

Diameter of the mandrel (dK)

1.929 ˝

49 mm

us-cutting

Katalog_CCTWS

DA6500

tool-application

rotating

Cutting diameter (Ds)

2.48 ˝

63 mm
