DAM32.032.M166.03B
Material number DAM32032M16603B

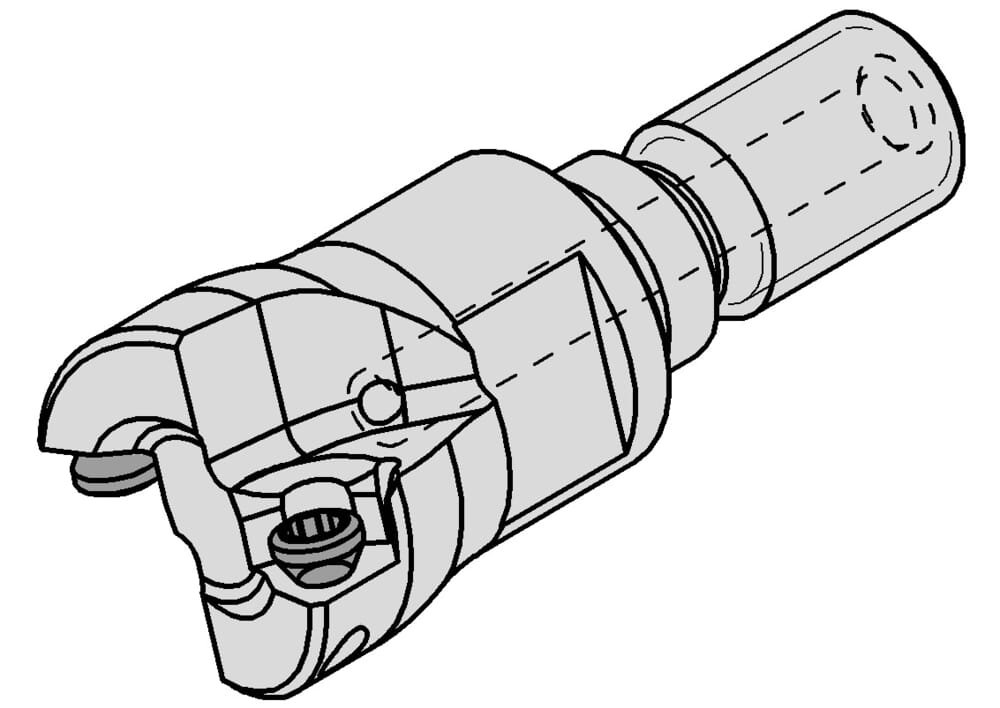

HORN Toolholder DAM32.032.M166.03B for Milling
Key range (SW)
0.945 ˝
24 mm
us-cutting
No
tool-application
rotating
Screw thread (d2)
M16
Maximum stepover (ap) (ap)
0.189 ˝
4.8 mm
Neck diameter on stop (d4)
1.142 ˝
29 mm
Length from stop (l2)
1.378 ˝
35 mm
Total milling length with insert (l1)
2.283 ˝
58 mm
Cutting diameter (Ds)
1.26 ˝
32 mm
Katalog_CCTMS
16001
Katalog_CCTWS
DA3232
Diameter miller body (d1)
1.22 ˝
31 mm
| Downloads | |
|---|---|
| DAM32_032_M166_03B-DXF.DXF | Download |
| DAM32_032_M166_03B-STP.STP | Download |
| DAM32_032_M166_03B-ISO.XML | Download |
| DAM32_032_M166_03B-DIN.XML | Download |
| Download all files | |
