DAM32.032.D162.03A

Toolholder

Material number DAM32032D16203A

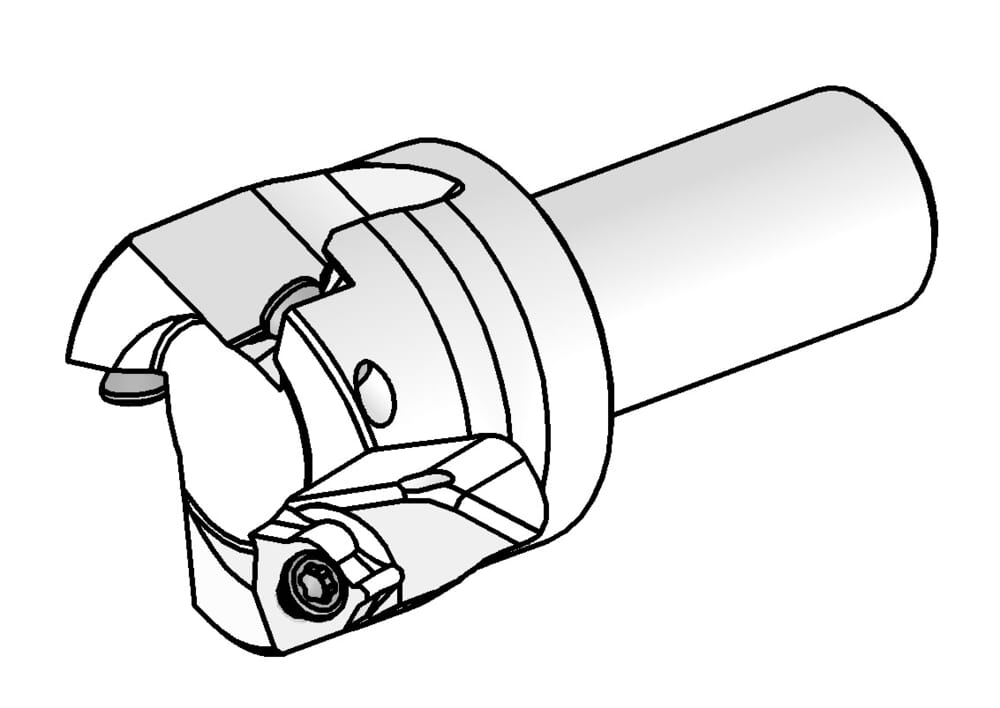

HORN Toolholder DAM32.032.D162.03A for Milling

Total length insert (l1)

2.362 ˝

60 mm

tool-application

rotating

Tension length (l3)

1.378 ˝

35 mm

Working length, Neck length, Extension length (l2)

0.984 ˝

25 mm

Neck diameter (d1)

0.63 ˝

16 mm

Cutting depth (ap)

0.177 ˝

4.5 mm

Shank diameter (d)

1.22 ˝

31 mm

Cutting diameter (Ds)

1.26 ˝

32 mm
