DAM32.025.D256.03B

Material number DAM32025D25603B

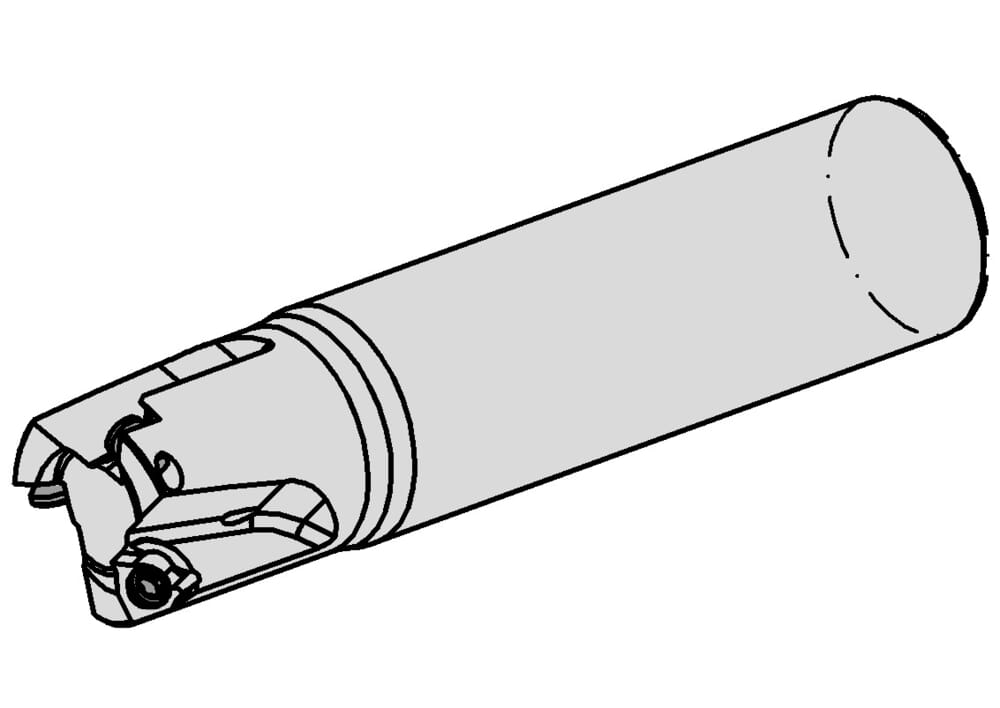

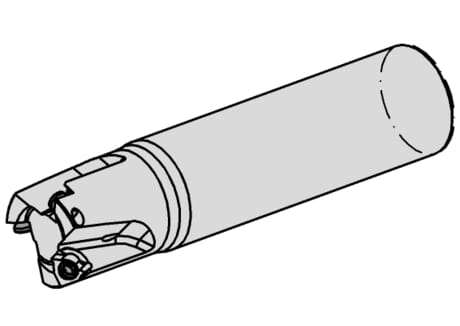

HORN Toolholder DAM32.025.D256.03B for Milling

Working length, Neck length, Extension length (l2)

1.26 ˝

32 mm

us-cutting

tool-application

rotating

Tension length (l3)

2.52 ˝

64 mm

Total length insert (l1)

4.016 ˝

102 mm

Neck diameter (d1)

0.945 ˝

24 mm

Cutting depth (ap)

0.189 ˝

4.8 mm

Shank diameter (d)

0.984 ˝

25 mm

Katalog_CCTWS

DA3225

Cutting diameter (Ds)

0.984 ˝

25 mm
