DAM32.025.D161.03A

Toolholder

Material number DAM32025D16103A

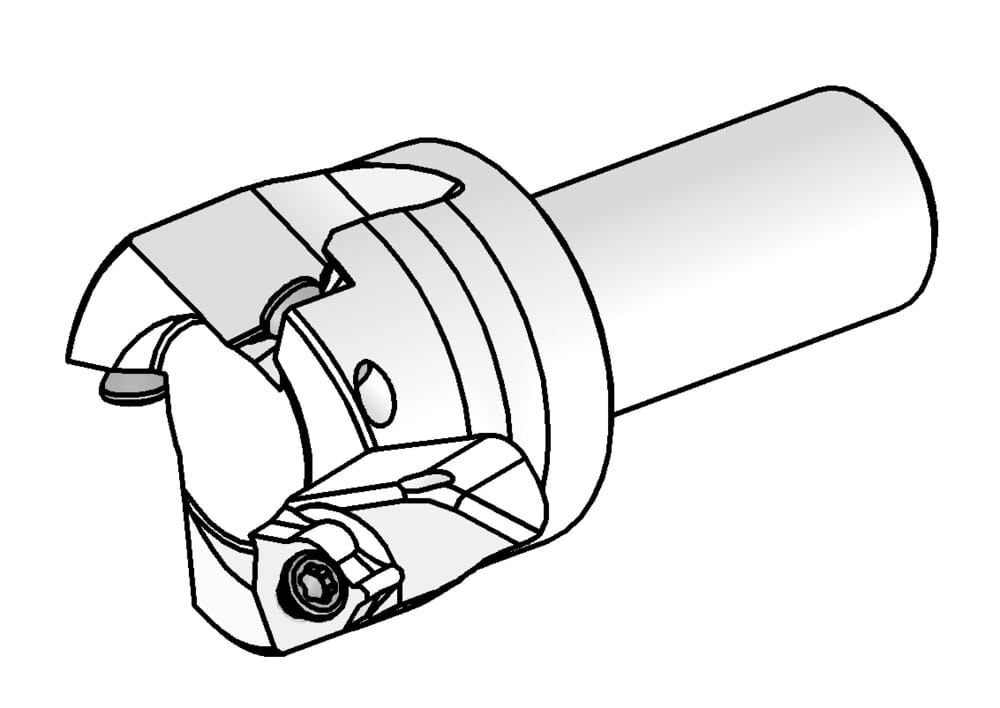

HORN Toolholder DAM32.025.D161.03A for Milling

Total length insert (l1)

2.165 ˝

55 mm

tool-application

rotating

Tension length (l3)

1.378 ˝

35 mm

Working length, Neck length, Extension length (l2)

0.787 ˝

20 mm

Neck diameter (d1)

0.63 ˝

16 mm

Cutting depth (ap)

0.177 ˝

4.5 mm

Shank diameter (d)

0.945 ˝

24 mm

Katalog_CCTWS

DA3225

Cutting diameter (Ds)

0.984 ˝

25 mm
