DAHM.37.020.M104.02
Material number DAHM37020M10402

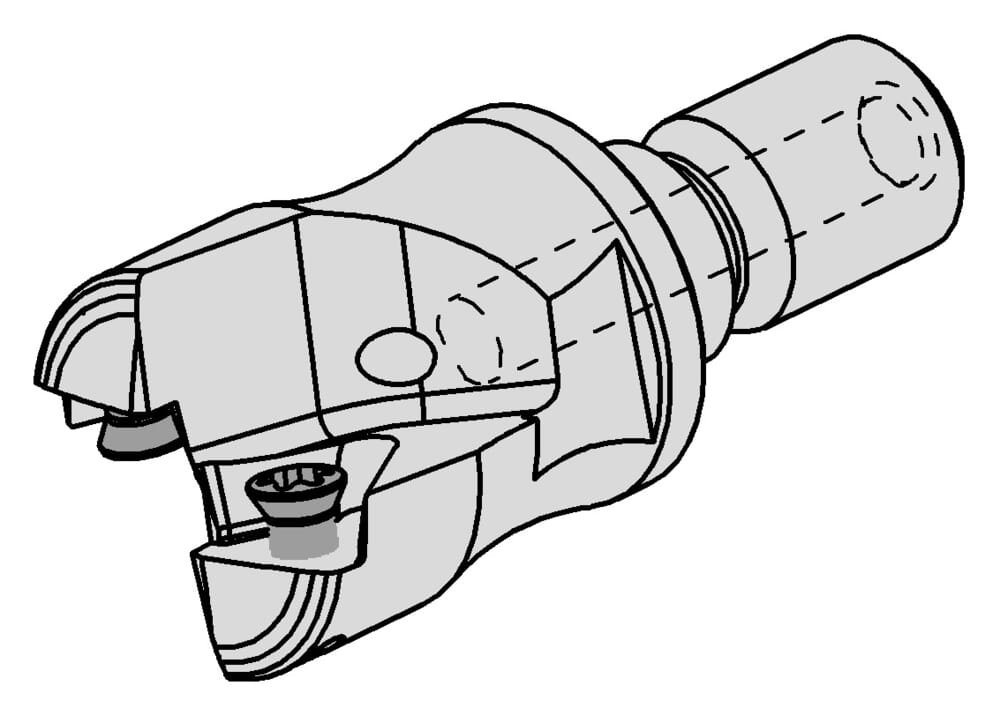

HORN Toolholder DAHM.37.020.M104.02 for Milling
Key range (SW)
0.591 ˝
15 mm
cutting
0
tool-application
rotating
Screw thread (d2)
M10
Maximum stepover (ap) (ap)
0.047 ˝
1.2 mm
Neck diameter on stop (d4)
0.709 ˝
18 mm
Length from stop (l2)
0.984 ˝
25 mm
Total milling length with insert (l1)
1.772 ˝
45 mm
Cutting diameter (Ds)
0.787 ˝
20 mm
Katalog_CCTMS
10001
Katalog_CCTWS
DAH37
Diameter miller body (d1)
0.748 ˝
19 mm
