DA32.025.A.04 TA45
Material number DA32025A04TA45

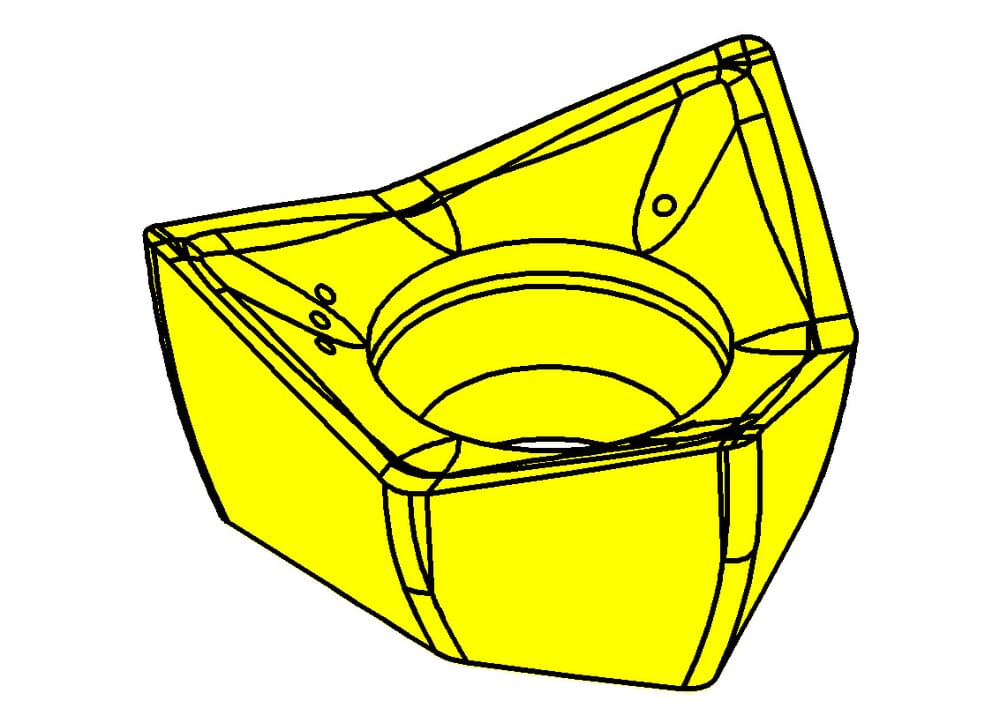

HORN Insert DA32.025.A.04 TA45 for Milling
Width of groove (mm) (a)
0.181 ˝
4.6 mm
tool-application
rotating
For cutting diameter (Ds)
0.984 ˝
25 mm
Cutting insert height, Cutting insert thickness (h)
0.185 ˝
4.7 mm
Maximum stepover axial (ap) (ap)
0.189 ˝
4.8 mm
cutting-edge-diameter-met
0.984 ˝
25 mm
Corner radius (rx)
0.016 ˝
0.4 mm
Katalog_SSC
DA3225
| Downloads | |
|---|---|
| DA32_025_A_04_TA45-ISO.XML | Download |
| DA32_025_A_04_TA45-DXF.DXF | Download |
| DA32_025_A_04_TA45-STP.STP | Download |
| DA32_025_A_04_TA45-DIN.XML | Download |
| Download all files | |
