911.0200.00 EG55
Material number 911020000EG55

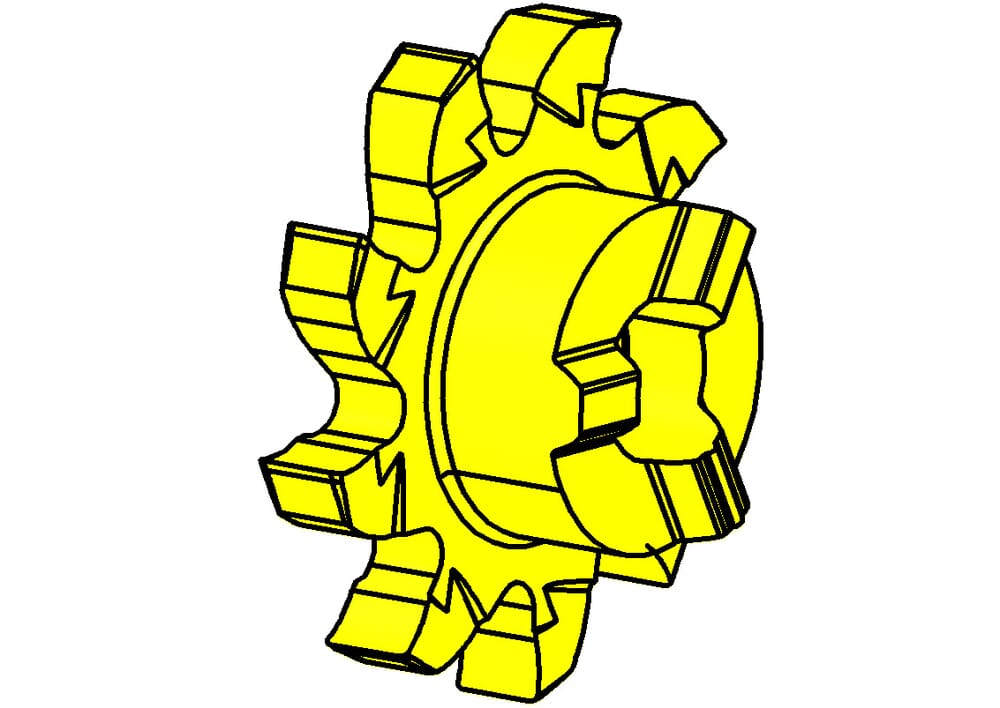

HORN Insert 911.0200.00 EG55 for Milling
Corner radius (r)
0.008 ˝
0.2 mm
tool-application
rotating
Cutting insert thickness, setting length complete (s)
0.24 ˝
6.1 mm
Maximum milling depth/ depth of groove (tmax)
0.138 ˝
3.5 mm
Width of groove (mm) (w)
0.079 ˝
2 mm
Cutting diameter (Ds)
0.697 ˝
17.7 mm
Katalog_SSC
311090R
| Downloads | |
|---|---|
| 911_0200_00_EG55-DXF.DXF | Download |
| 911_0200_00_EG55-ISO.XML | Download |
| 911_0200_00_EG55-STP.STP | Download |
| 911_0200_00_EG55-DIN.XML | Download |
| Download all files | |
