608.1325.01 TA45
Recommended:
Material number 608132501TA45

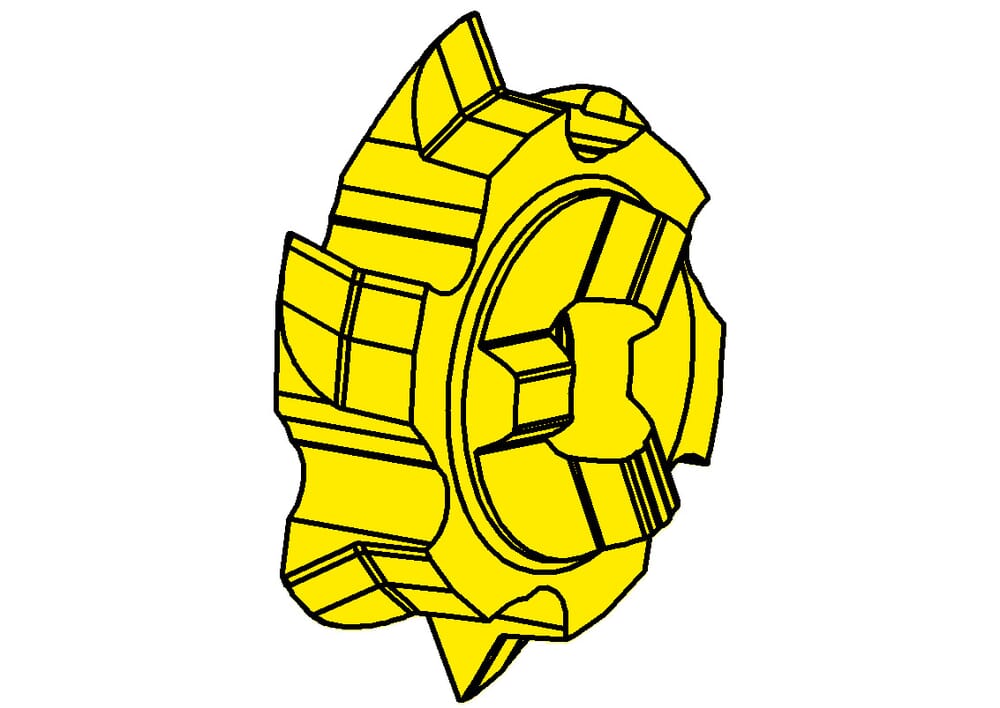

HORN Insert 608.1325.01 TA45 for Gewinden
Maximum pitch (Pmax)
0.098 ˝
2.5 mm
us-cutting
Yes
tool-application
rotating
Cutting diameter (Ds)
0.52 ˝
13.2 mm
Pitch (P)
0.098 ˝
2.5 mm
Cutting insert height, Cutting insert thickness (s)
0.179 ˝
4.55 mm
Setting length (E)
0.13 ˝
3.3 mm
Katalog_SSC
308080R
| Downloads | |
|---|---|
| 608_1325_01_TA45-ISO.XML | Download |
| 608_1325_01_TA45-DXF.DXF | Download |
| 608_1325_01_TA45-STP.STP | Download |
| 608_1325_01_TA45-DIN.XML | Download |
| Download all files | |
