332.0300.2.00 AS45
Insert
Material number 3320300200AS45

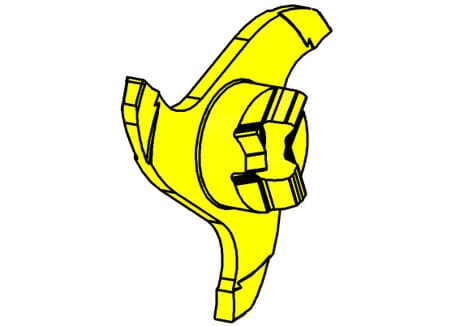

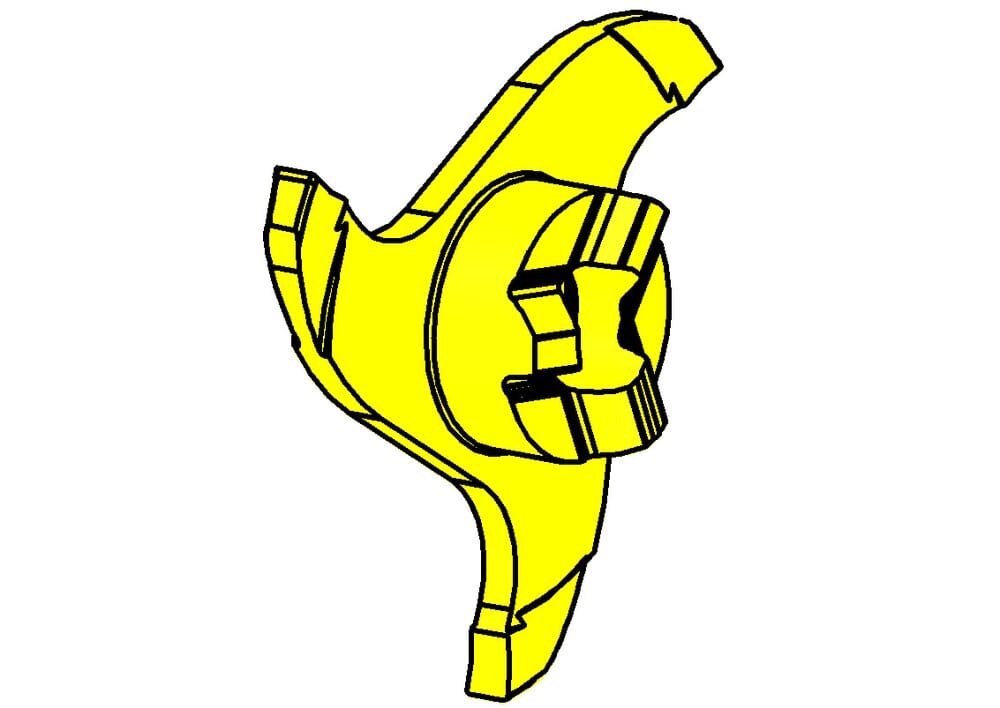

HORN Insert 332.0300.2.00 AS45 for Milling
Corner radius (r)
0.008
˝
0.2
mm
tool-application
rotating
Cutting insert thickness, setting length complete (s)
0.224
˝
5.7
mm
Maximum milling depth/ depth of groove (tmax)
0.394
˝
10
mm
Width of groove (mm) (w)
0.118
˝
3
mm
Cutting diameter (Ds)
1.248
˝
31.7
mm
Katalog_SSC
332110R
| Downloads | |
|---|---|
| 332_0300_2_00_AS45-ISO.XML | Download |
| 332_0300_2_00_AS45-DXF.DXF | Download |
| 332_0300_2_00_AS45-STP.STP | Download |
| 332_0300_2_00_AS45-DIN.XML | Download |
| Download all files | |
