312.2617.43 EG52
Recommended:
Material number 312261743EG52

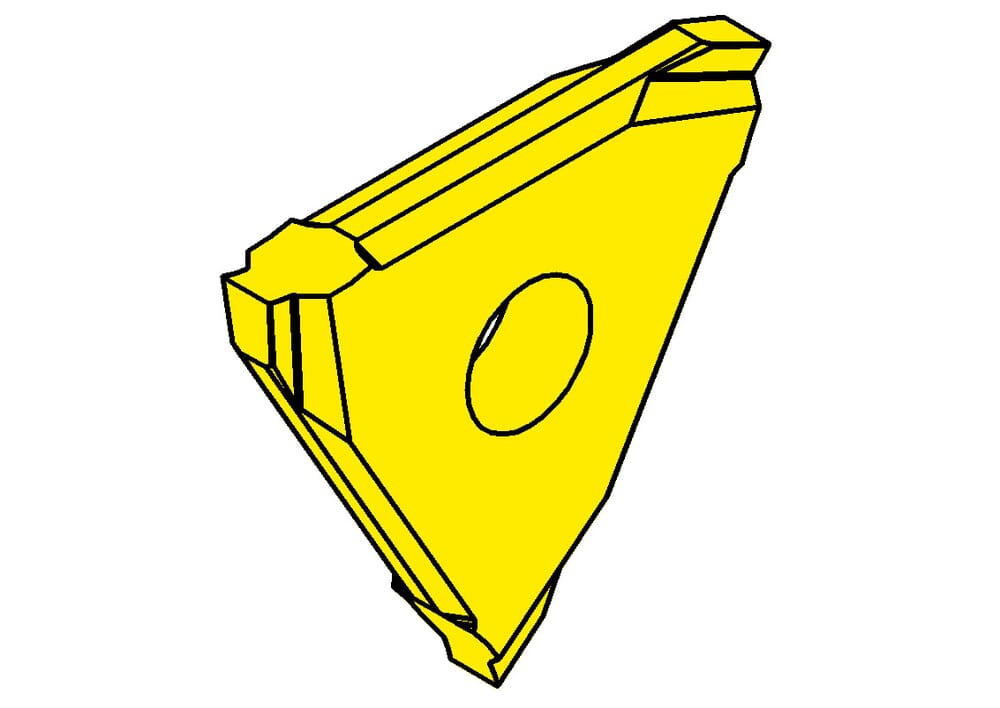

HORN Insert 312.2617.43 EG52 for Turning
Milling depth without NAKF (t1)
0.063 ˝
1.6 mm
us-cutting
Yes
tool-application
static
Cutting insert width (s)
0.169 ˝
4.3 mm
Nominal range (Nw)
0.104 ˝
2.65 mm
Cancellation (a1)
0.03 ˝
0.77 mm
Width of groove (mm) (w)
0.11 ˝
2.79 mm
Katalog_SSC
31204N
Maximum depth of groove (tmax)
0.069 ˝
1.75 mm
| Downloads | |
|---|---|
| 312_2617_43_EG52-DXF.DXF | Download |
| 312_2617_43_EG52-STP.STP | Download |
| 312_2617_43_EG52-ISO.XML | Download |
| 312_2617_43_EG52-DIN.XML | Download |
| Download all files | |
