312.1607.33 EG52
Recommended:
Material number 312160733EG52

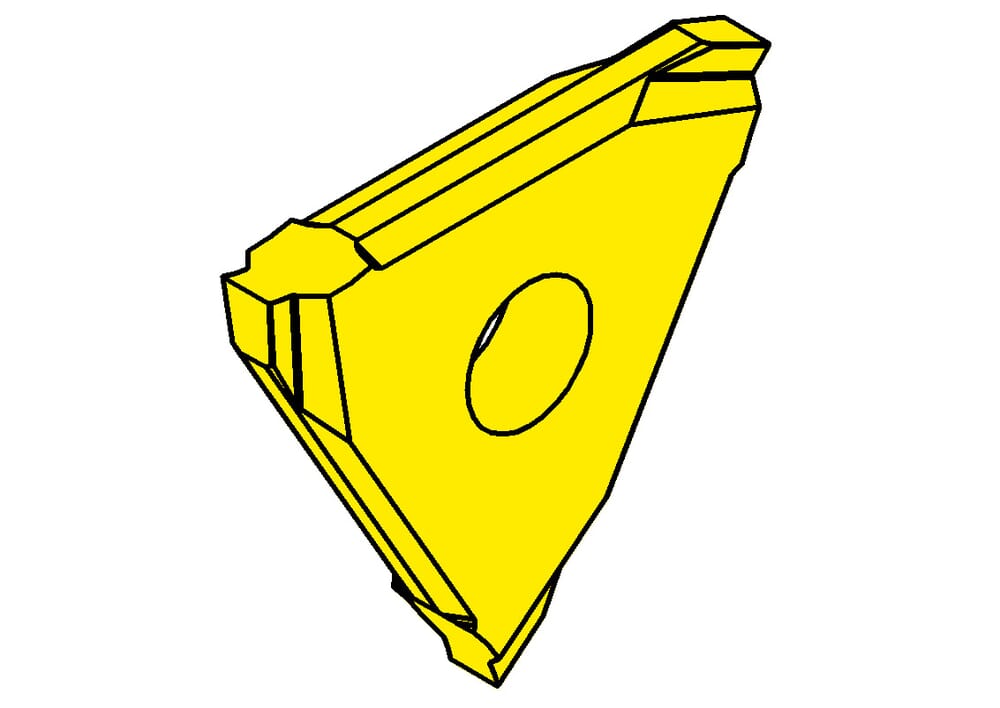

HORN Insert 312.1607.33 EG52 for Turning
Milling depth without NAKF (t1)
0.024 ˝
0.6 mm
us-cutting
Yes
tool-application
static
Cutting insert width (s)
0.13 ˝
3.3 mm
Nominal range (Nw)
0.063 ˝
1.6 mm
Cancellation (a1)
0.031 ˝
0.79 mm
Width of groove (mm) (w)
0.069 ˝
1.74 mm
Katalog_SSC
31203N
Maximum depth of groove (tmax)
0.028 ˝
0.7 mm
| Downloads | |
|---|---|
| 312_1607_33_EG52-DXF.DXF | Download |
| 312_1607_33_EG52-STP.STP | Download |
| 312_1607_33_EG52-ISO.XML | Download |
| 312_1607_33_EG52-DIN.XML | Download |
| Download all files | |
