312.1603.50 EG52
Recommended:
Material number 312160350EG52

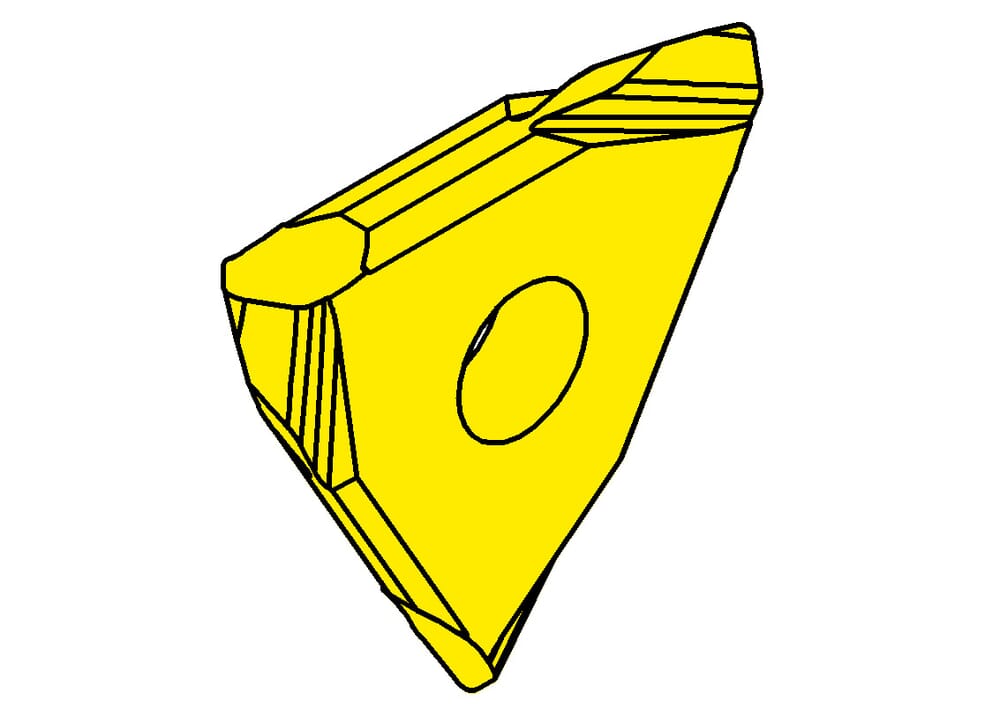

HORN Insert 312.1603.50 EG52 for Turning
Cutting insert width (s)
0.197 ˝
5 mm
us-cutting
Yes
tool-application
static
Maximum freestanding depth (t1)
0.012 ˝
0.3 mm
Katalog_SSC
31204N
Smallest workpiece diameter (Dmin)
0.984 ˝
25 mm
Profile radius (r1)
0.063 ˝
1.6 mm
Free-throw base width (g/f)
0.142 ˝
3.6 mm
| Downloads | |
|---|---|
| 312_1603_50_EG52-ISO.XML | Download |
| 312_1603_50_EG52-DIN.XML | Download |
| 312_1603_50_EG52-DXF.DXF | Download |
| 312_1603_50_EG52-STP.STP | Download |
| Download all files | |
