312.0223.30 TN32
Recommended:
Also suitable for:
Material number 312022330TN32

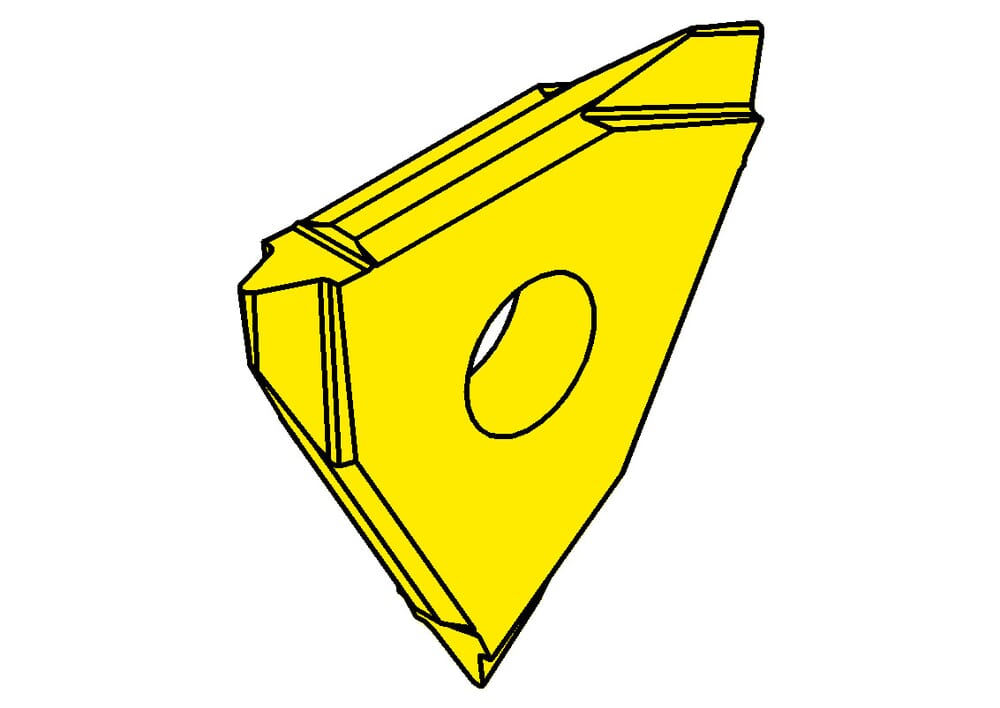

HORN Inserts 312.0223.30 TN32 for Turning
us-cutting
Yes
tool-application
static
Profile, thread depth (t1)
0.091 ˝
2.3 mm
Cutting insert width (s)
0.118 ˝
3 mm
Corner radius (r2)
0.008 ˝
0.2 mm
Katalog_SSC
31203N
Profile radius (r1)
0.01 ˝
0.25 mm
| Downloads | |
|---|---|
| 312_0223_30_TN32-DXF.DXF | Download |
| 312_0223_30_TN32-STP.STP | Download |
| 312_0223_30_TN32-ISO.XML | Download |
| 312_0223_30_TN32-DIN.XML | Download |
| Download all files | |
