312.0200.10 EG55
Recommended:
Material number 312020010EG55

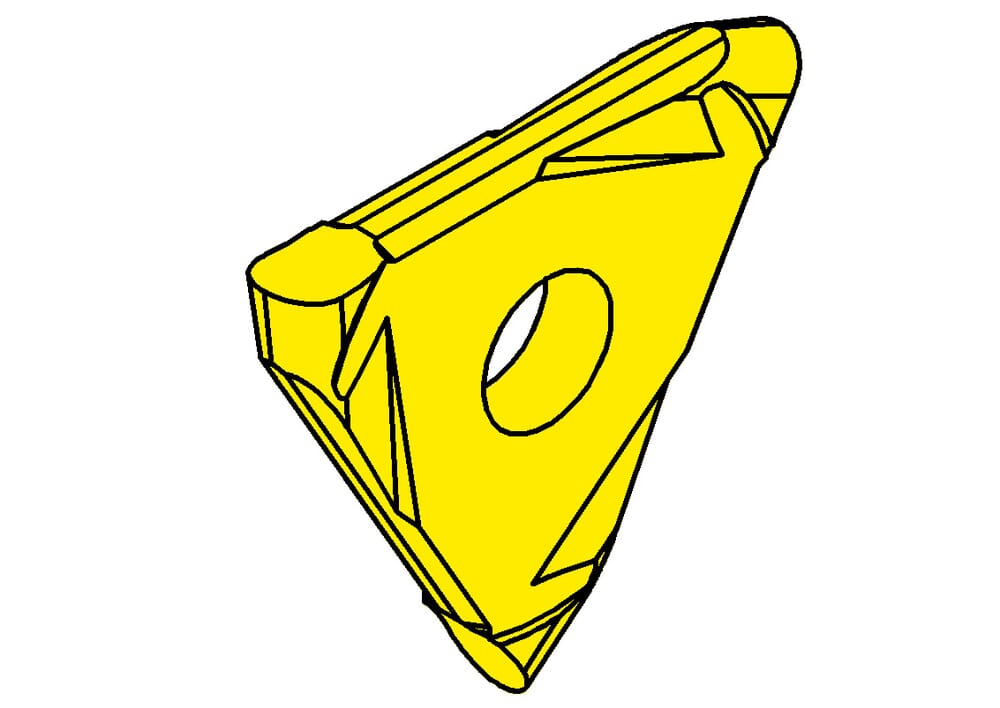

HORN Insert 312.0200.10 EG55 for Turning
us-cutting
Yes
tool-application
static
Cancellation (a1)
0.01 ˝
0.25 mm
Width of groove (mm) (w)
0.079 ˝
2 mm
Katalog_SSC
31201N
Full radius (r)
0.039 ˝
1 mm
| Downloads | |
|---|---|
| 312_0200_10_EG55-DXF.DXF | Download |
| 312_0200_10_EG55-STP.STP | Download |
| 312_0200_10_EG55-ISO.XML | Download |
| 312_0200_10_EG55-DIN.XML | Download |
| Download all files | |
