311.0005.10 RC45
Insert
Material number 311000510RC45

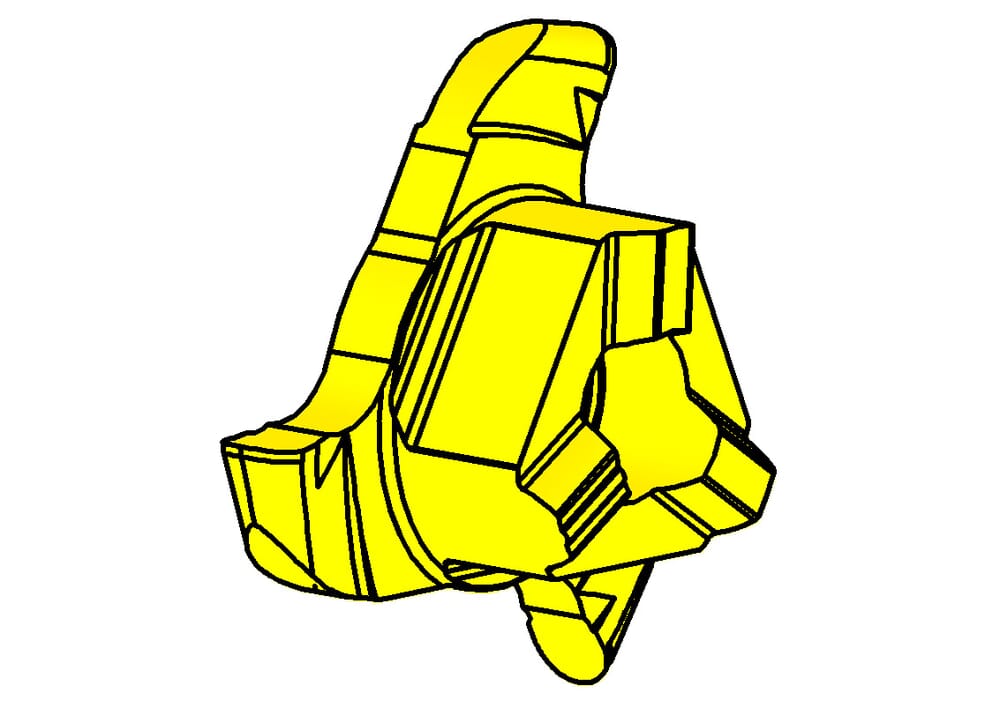

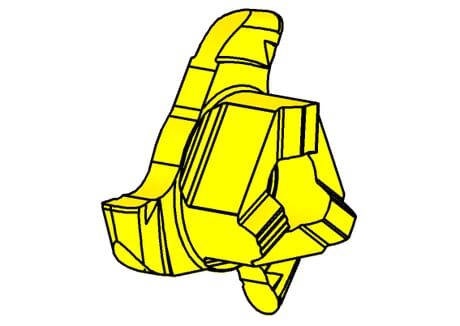

HORN Insert 311.0005.10 RC45 for Milling
Radius, full-radius (r)
0.02 ˝
0.5 mm
tool-application
rotating
Cutting insert thickness, setting length complete (s)
0.226 ˝
5.75 mm
Maximum milling depth/ depth of groove (tmax)
0.138 ˝
3.5 mm
Width of groove (mm) (w)
0.039 ˝
1 mm
Cutting diameter (Ds)
0.697 ˝
17.7 mm
Katalog_SSC
311090R
