308.0200.00 AS45
Recommended:
Also suitable for:
Material number 308020000AS45

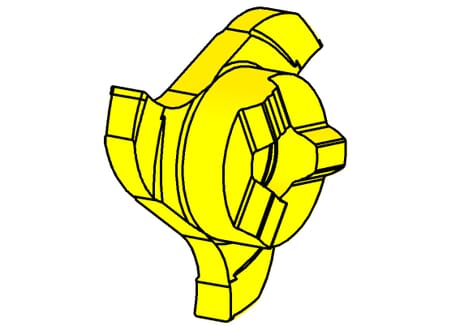

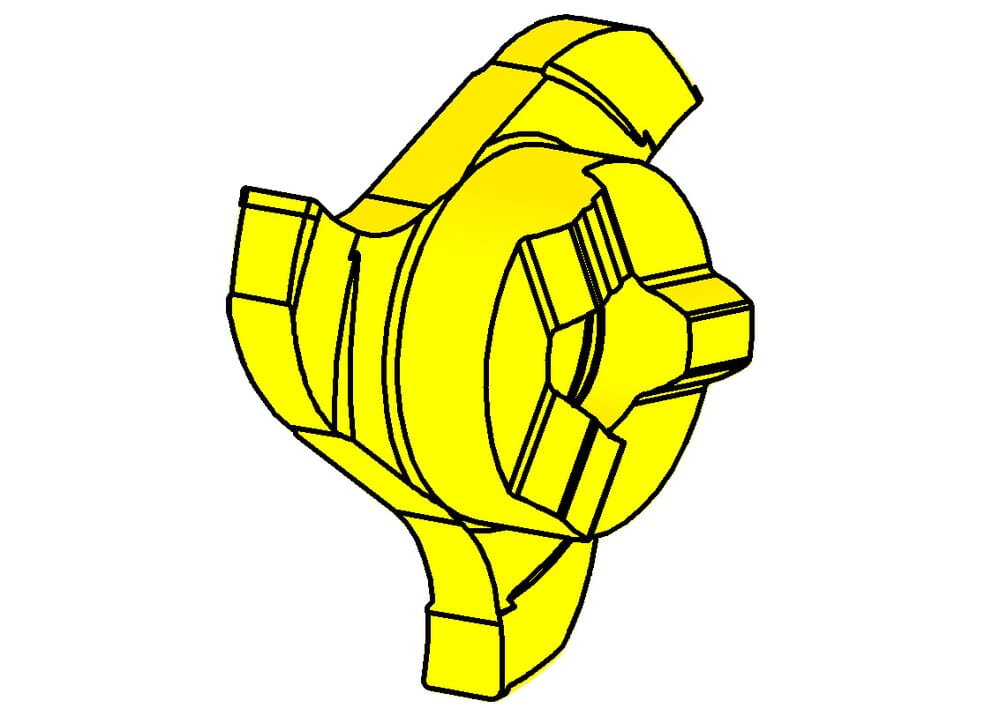

HORN Insert 308.0200.00 AS45 for Milling
Maximum milling depth/ depth of groove (tmax)
0.138 ˝
3.5 mm
tool-application
rotating
Cutting insert thickness, setting length complete (s)
0.177 ˝
4.5 mm
Cutting diameter (Ds)
0.618 ˝
15.7 mm
Width of groove (mm) (w)
0.079 ˝
2 mm
Corner radius (r)
0.008 ˝
0.2 mm
Katalog_SSC
308080R
| Downloads | |
|---|---|
| 308_0200_00_AS45-ISO.XML | Download |
| 308_0200_00_AS45-DXF.DXF | Download |
| 308_0200_00_AS45-STP.STP | Download |
| 308_0200_00_AS45-DIN.XML | Download |
| Download all files | |
