308.0130.00 TN35
Insert
Material number 308013000TN35

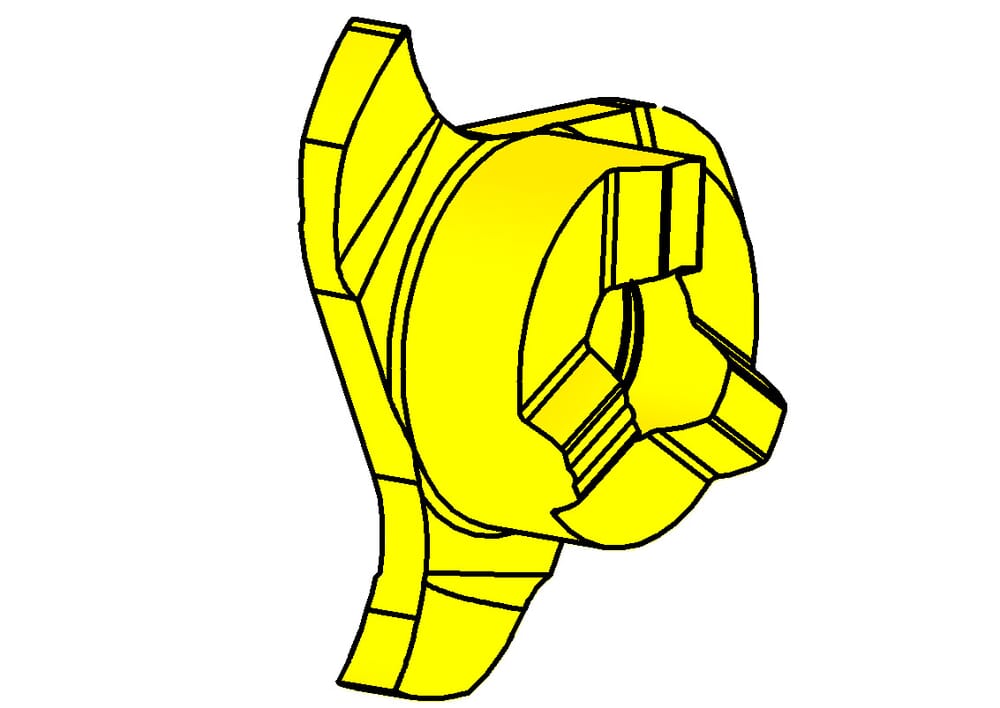

HORN Insert 308.0130.00 TN35 for Milling
Width of groove (mm) (w)
0.056
˝
1.41
mm
tool-application
rotating
Cutting insert thickness, setting length complete (s)
0.177
˝
4.5
mm
Nominal range (Nw)
0.051
˝
1.3
mm
Maximum milling depth/ depth of groove (tmax)
0.138
˝
3.5
mm
Cutting diameter (Ds)
0.618
˝
15.7
mm
Katalog_SSC
308080R
| Downloads | |
|---|---|
| 308_0130_00_TN35-ISO.XML | Download |
| 308_0130_00_TN35-DXF.DXF | Download |
| 308_0130_00_TN35-STP.STP | Download |
| 308_0130_00_TN35-DIN.XML | Download |
| Download all files | |
