306.0150.00 TF45
Recommended:
Material number 306015000TF45

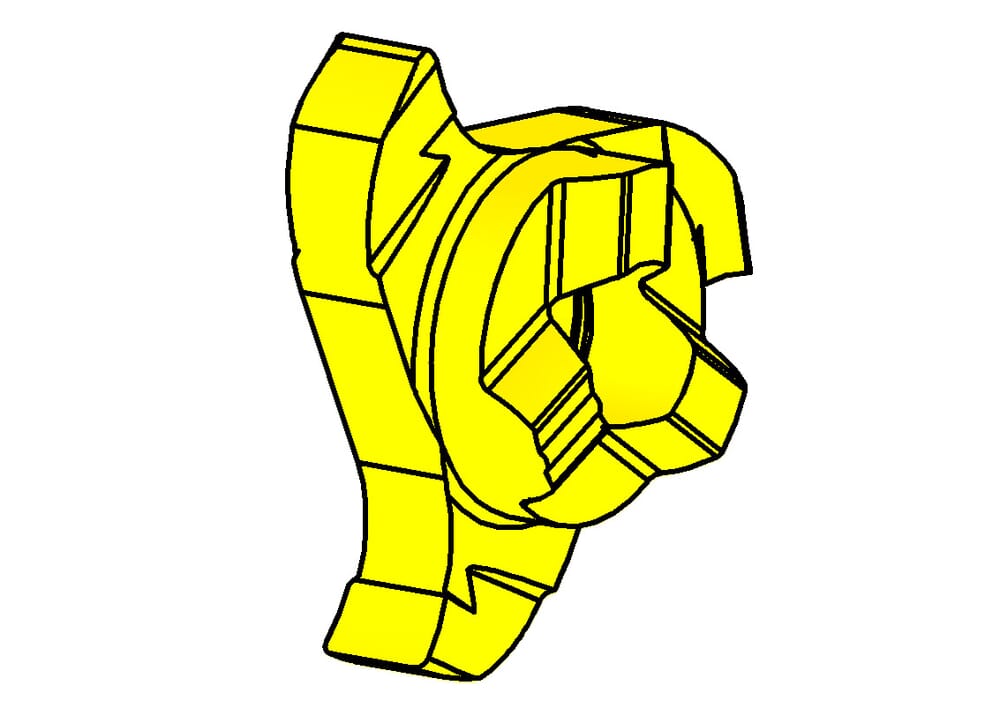

HORN Inserts 306.0150.00 TF45 for Milling
us-cutting
Yes
tool-application
rotating
Cutting diameter (Ds)
0.461 ˝
11.7 mm
Cutting insert thickness, setting length complete (s)
0.126 ˝
3.2 mm
Maximum milling depth/ depth of groove (tmax)
0.098 ˝
2.5 mm
Width of groove (mm) (w)
0.059 ˝
1.5 mm
Katalog_SSC
306060R
| Downloads | |
|---|---|
| 306_0150_00_TF45-ISO.XML | Download |
| 306_0150_00_TF45-DXF.DXF | Download |
| 306_0150_00_TF45-STP.STP | Download |
| 306_0150_00_TF45-DIN.XML | Download |
| Download all files | |
