306.0007.15 AS45
Material number 306000715AS45

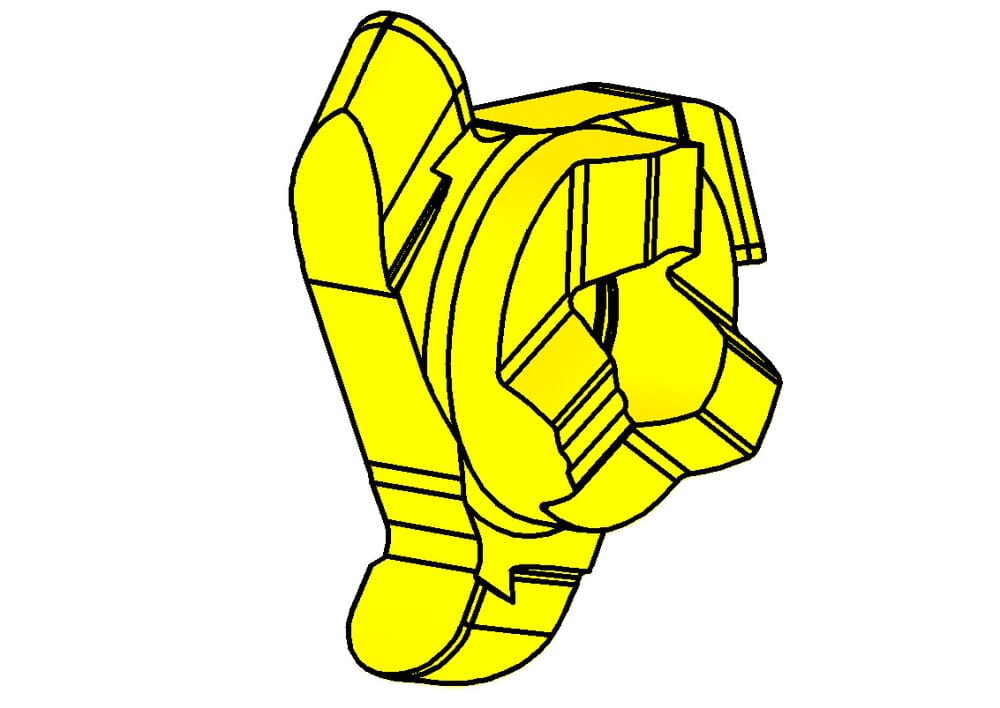

HORN Insert 306.0007.15 AS45 for Milling
Radius, full-radius (r)
0.03 ˝
0.75 mm
tool-application
rotating
Cutting insert thickness, setting length complete (s)
0.126 ˝
3.2 mm
Maximum milling depth/ depth of groove (tmax)
0.098 ˝
2.5 mm
Width of groove (mm) (w)
0.059 ˝
1.5 mm
Cutting diameter (Ds)
0.461 ˝
11.7 mm
Katalog_SSC
306060R
| Downloads | |
|---|---|
| 306_0007_15_AS45-ISO.XML | Download |
| 306_0007_15_AS45-DXF.DXF | Download |
| 306_0007_15_AS45-STP.STP | Download |
| 306_0007_15_AS45-DIN.XML | Download |
| Download all files | |
