U340.1250.02
Material number U340125002

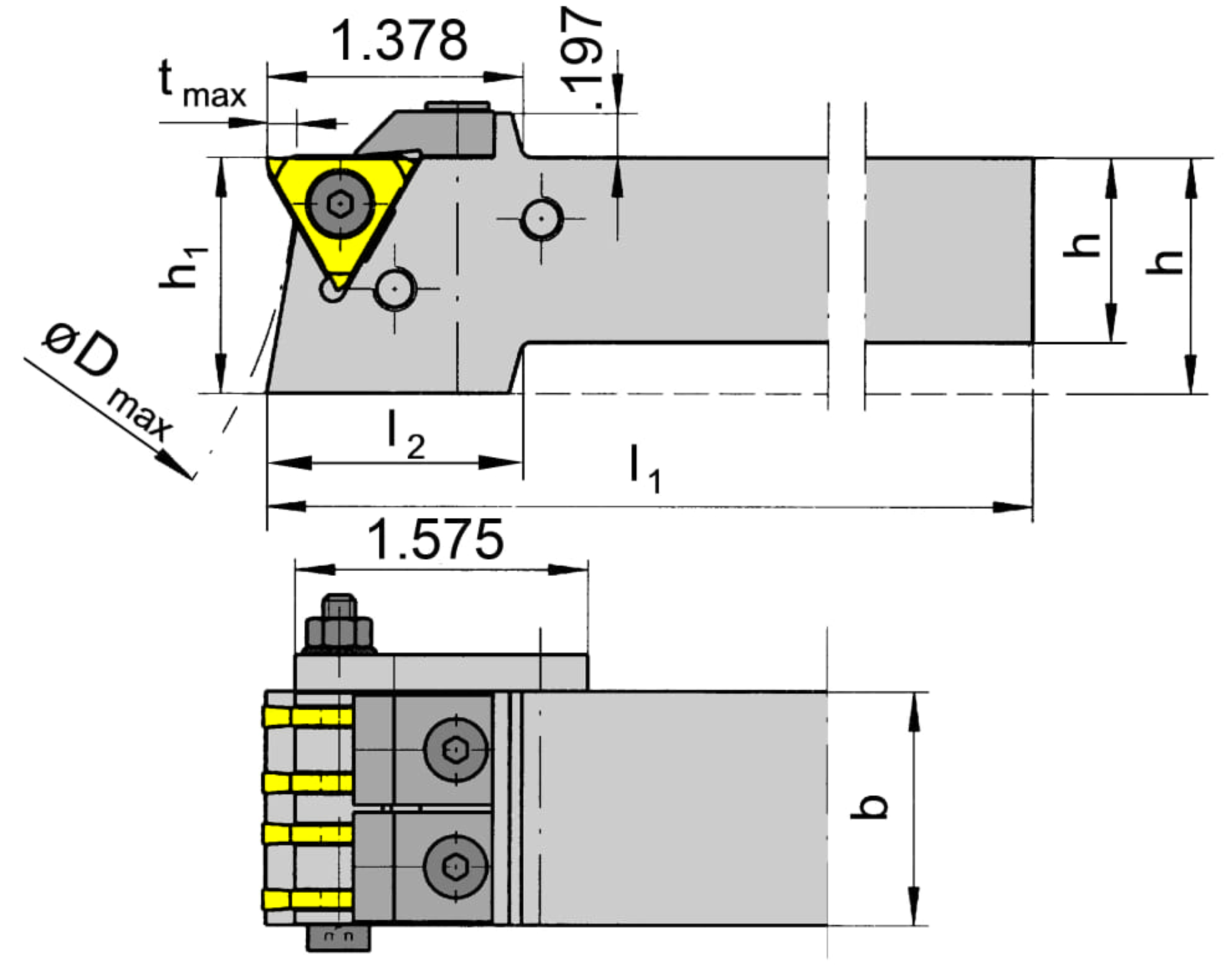

HORN Toolholders U340.1250.02 for Turning
head-length-top-including-cutting-edge-met
1.378 ˝
35 mm
tool-application
static
tightening_torque
4.5 Nm
Plating seat size (Größe)
2
Katalog_CCTWS
31202N
Shank width (b)
1.25 ˝
31.75 mm
peak-height-imp
1.25 ˝
31.75 mm
Maximum workpiece diameter (Dmax)
6.299 ˝
160 mm
insertion-depth-max-imp
0.157 ˝
4 mm
Shank height (h)
1.25 ˝
31.75 mm
Total length (including cutting insert) (l1)
6.693 ˝
170 mm
Adjustment dimension (h1)
1.25 ˝
31.75 mm
| Downloads | |
|---|---|
| U340_1250_02_20180322_015901915.STP | Download |
| Download all files | |
