SH117.0916.3.06.IK
Material number SH1170916306IK

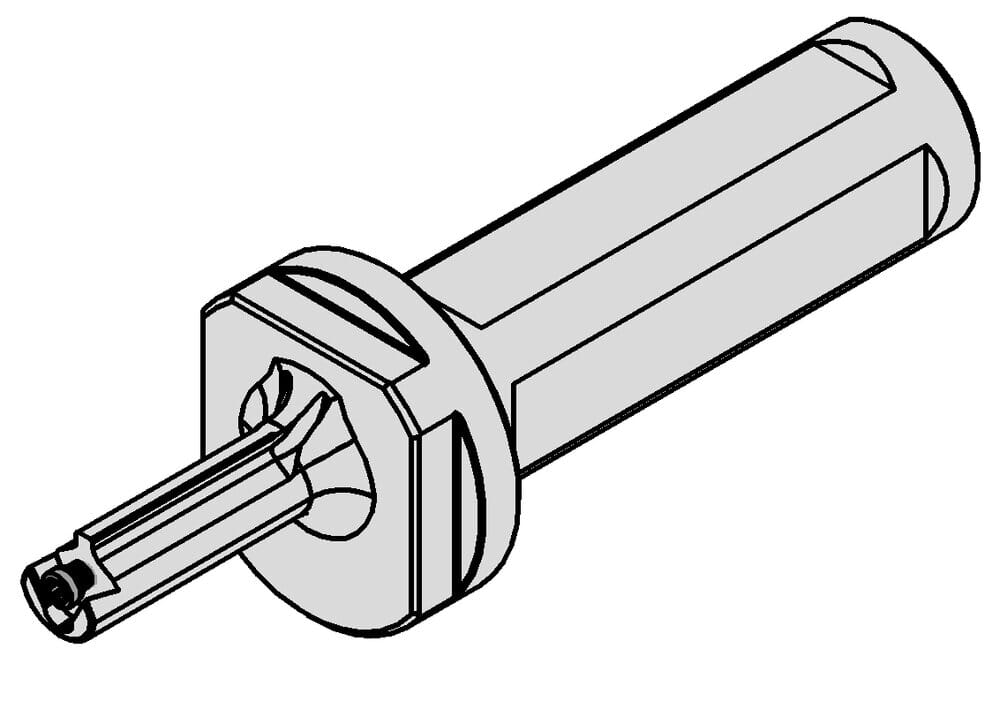

HORN Toolholder SH117.0916.3.06.IK for Broaching
Total length (including cutting insert) (l1)
3.642 ˝
92.5 mm
us-cutting
No
Katalog_CCTWS
117J605
tool-application
both
Clamping, shank diameter (d)
0.63 ˝
16 mm
Minimum drilling diameter (Dmin)
0.354 ˝
9 mm
Length from bore (l)
1.673 ˝
42.5 mm
Height clamping surface(s) (h)
0.551 ˝
14 mm
Adjustment dimension center to cutting edge (f1)
0.22 ˝
5.6 mm
Outcropping, neck, working length (l2)
1.181 ˝
30 mm
