S117.MD10.5.07U.M0 MD10
Material number S117MD10507UM0MD10

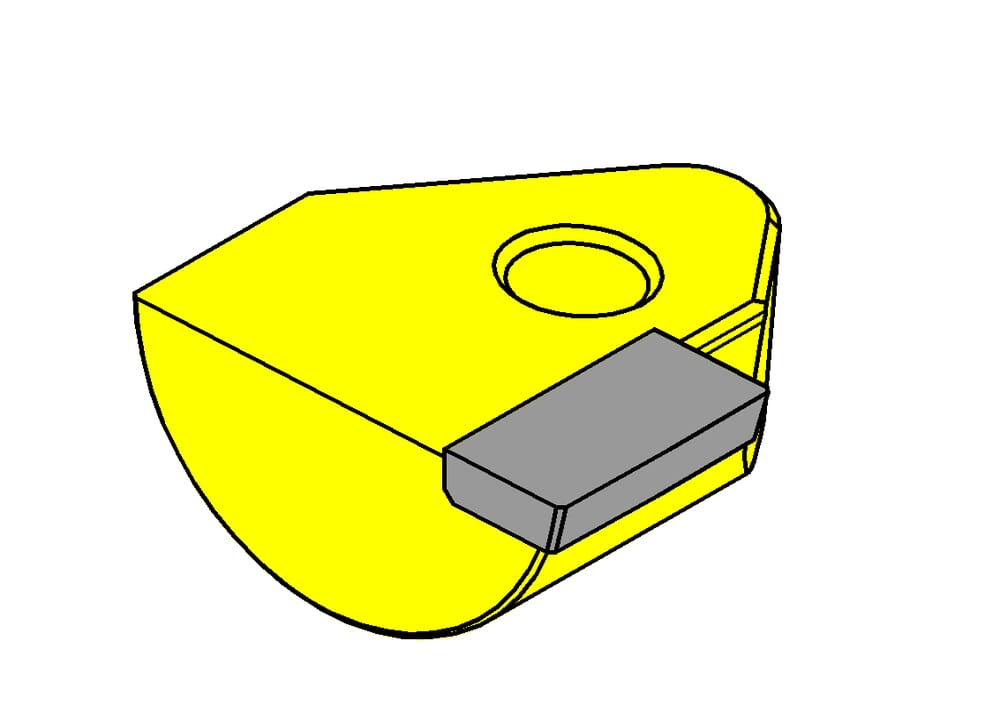

HORN Insert S117.MD10.5.07U.M0 MD10 for Milling

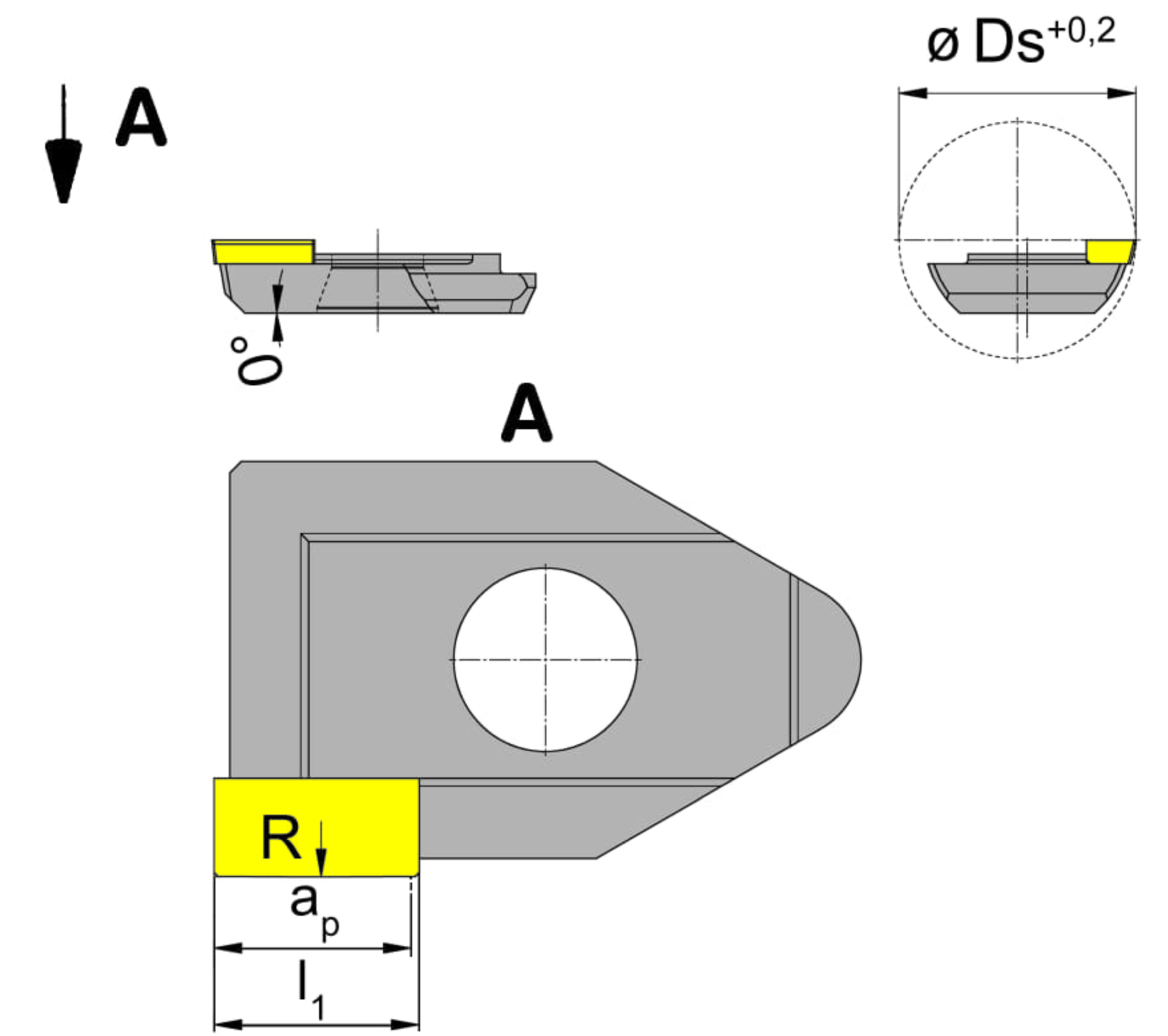

Cutting diameter (Ds)
0.394 ˝
10 mm
Radius, full-radius (r)
5.906 ˝
150 mm
Katalog_SSC
117MD07
Effective cutting length (l1)
0.205 ˝
5.2 mm
tool-application
rotating
| Downloads | |
|---|---|
| S117MD10507UM0_20230116_133059249.STP | Download |
| S117MD10507UM0.DXF | Download |
| Download all files | |
