RU369.1000.02
Material number RU369100002

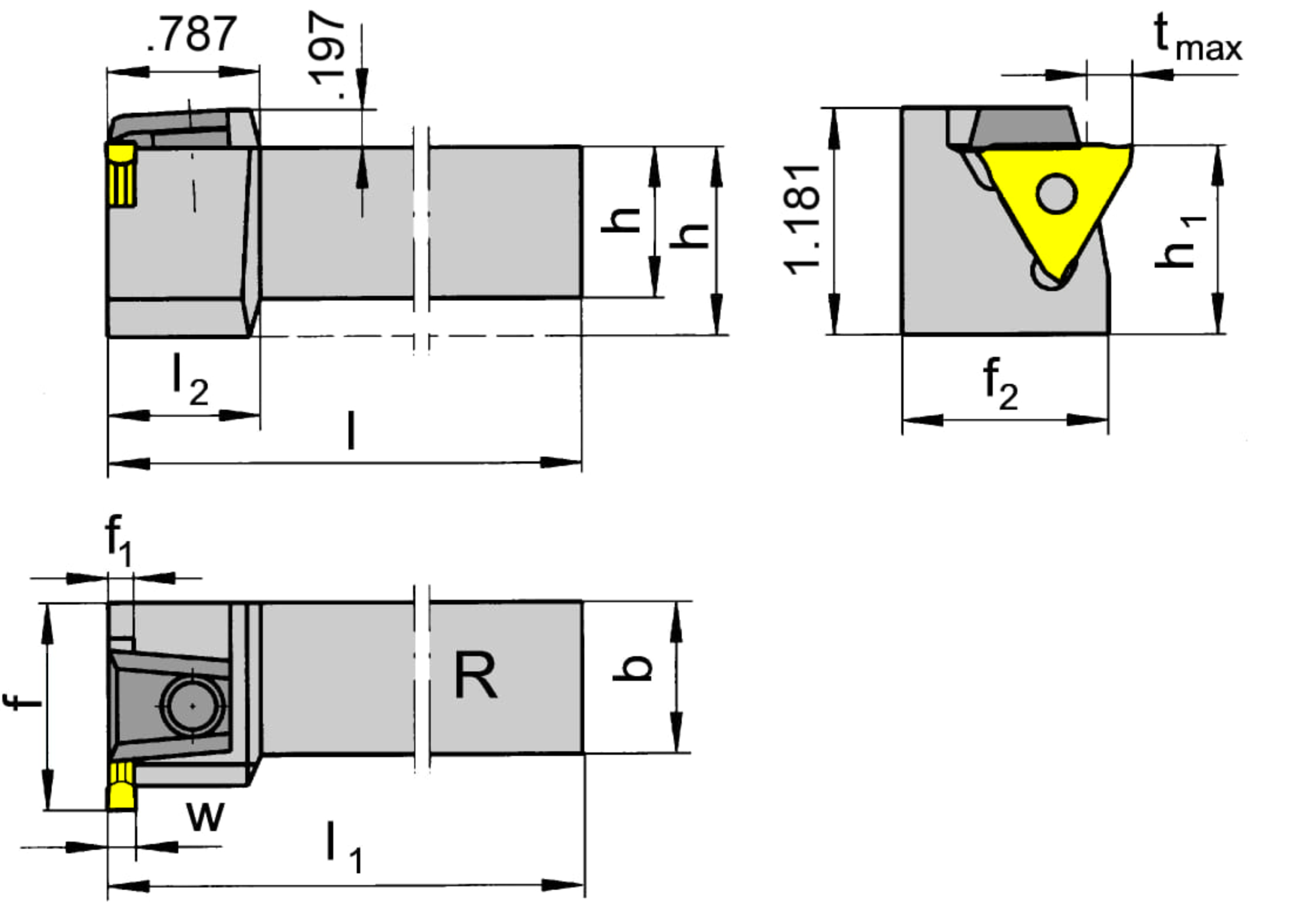

HORN Toolholders RU369.1000.02 for Turning
head-length-top-including-cutting-edge-met
0.787 ˝
20 mm
Clamping range maximum (Spannbereich)
0.114 ˝
2.9 mm
Clamping range minimum (Spannbereich)
0.075 ˝
1.9 mm
Katalog_CCTWS
31202N;31202R;31202L
Head width bottom (f2)
1.116 ˝
28.35 mm
machining-direction-sap
right
Length overall formula (l1)
l-f1+w-a1
Plating seat size (Größe)
2
tightening_torque
4.5 Nm
tool-application
static
total-length-including-cutting-insert-imp
6.004 ˝
152.5 mm
Adjustment dimension (f)
1.26 ˝
32 mm
Shank height (h)
1 ˝
25.4 mm
head-height-met
1.197 ˝
30.4 mm
Maximum depth of groove (tmax)
0.25 ˝
6.35 mm
Insert width (f1)
0.098 ˝
2.5 mm
Peak height (h1)
1 ˝
25.4 mm
Shank width (b)
1 ˝
25.4 mm
| Downloads | |
|---|---|
| RU369100002.STP | Download |
| Download all files | |
