RU105.SA16.2.5 TN35
Material number RU105SA1625TN35
HORN Inserts RU105.SA16.2.5 TN35 for
pitch-met
0.063 ˝
1.588 mm
tool-application
static
thread-per-inch
16
machining-direction-sap
right
pitch-max-imp
0.063 ˝
1.588 mm

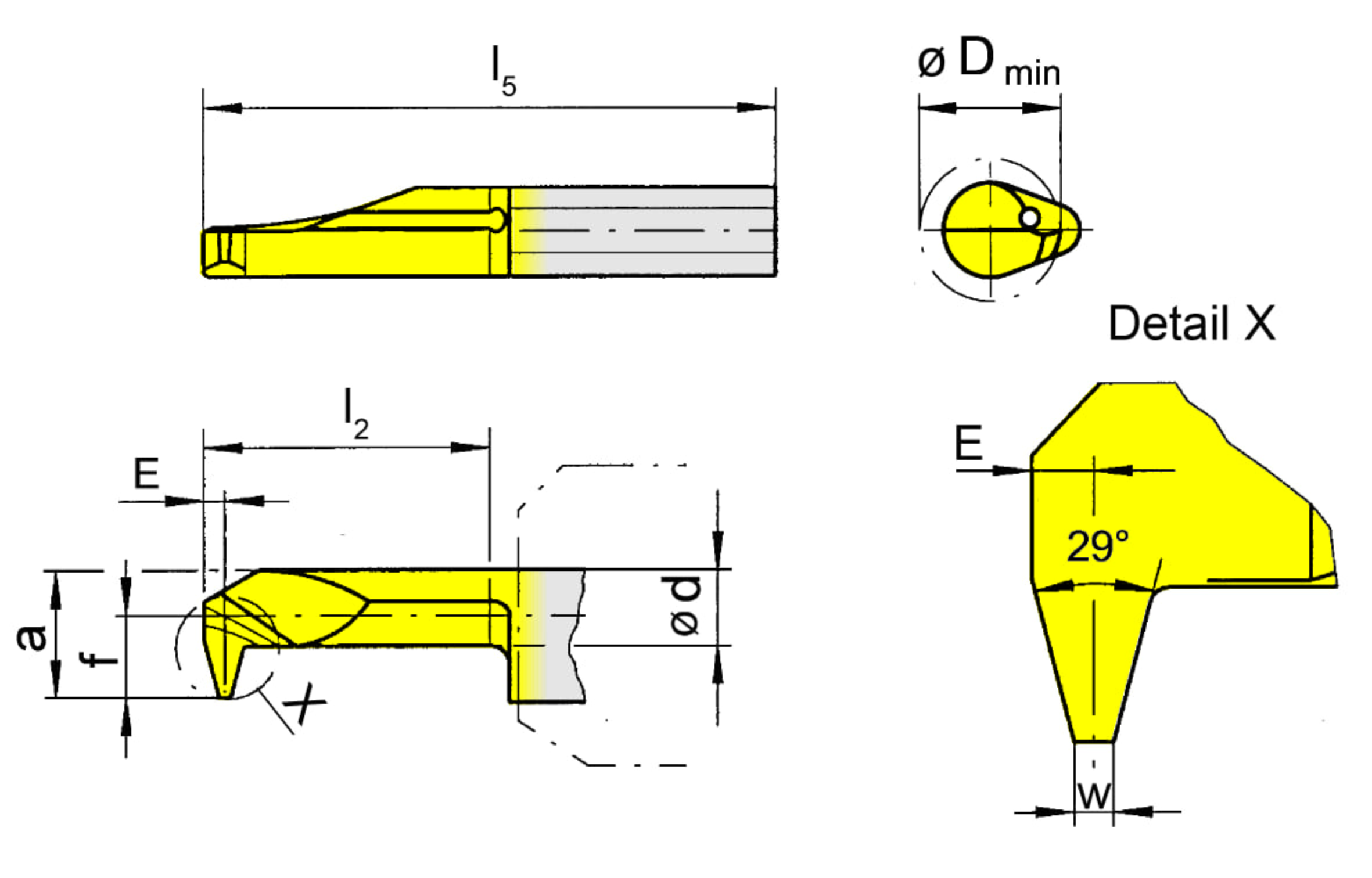

Smallest bore diameter (Dmin)
0.201 ˝
5.1 mm
Setting length (E)
0.028 ˝
0.7 mm
Cutting insert width (a)
0.185 ˝
4.7 mm
Setting range radial (f)
0.091 ˝
2.3 mm
Neck diameter (d)
0.142 ˝
3.6 mm
Neck length (l2)
0.591 ˝
15 mm
Katalog_SSC
105125
width-blank-imp
0.276 ˝
7 mm
Cutting insert total length (l5)
1.181 ˝
30 mm
depth-of-groove-max-imp
0.031 ˝
0.8 mm
| Downloads | |
|---|---|
| RU105SA1625.DXF | Download |
| RU105SA1625_20230116_192326222.STP | Download |
| Download all files | |
