RU105.AC10.3.7 TH35
Material number RU105AC1037TH35
HORN RU105.AC10.3.7 TH35 for Gewinden

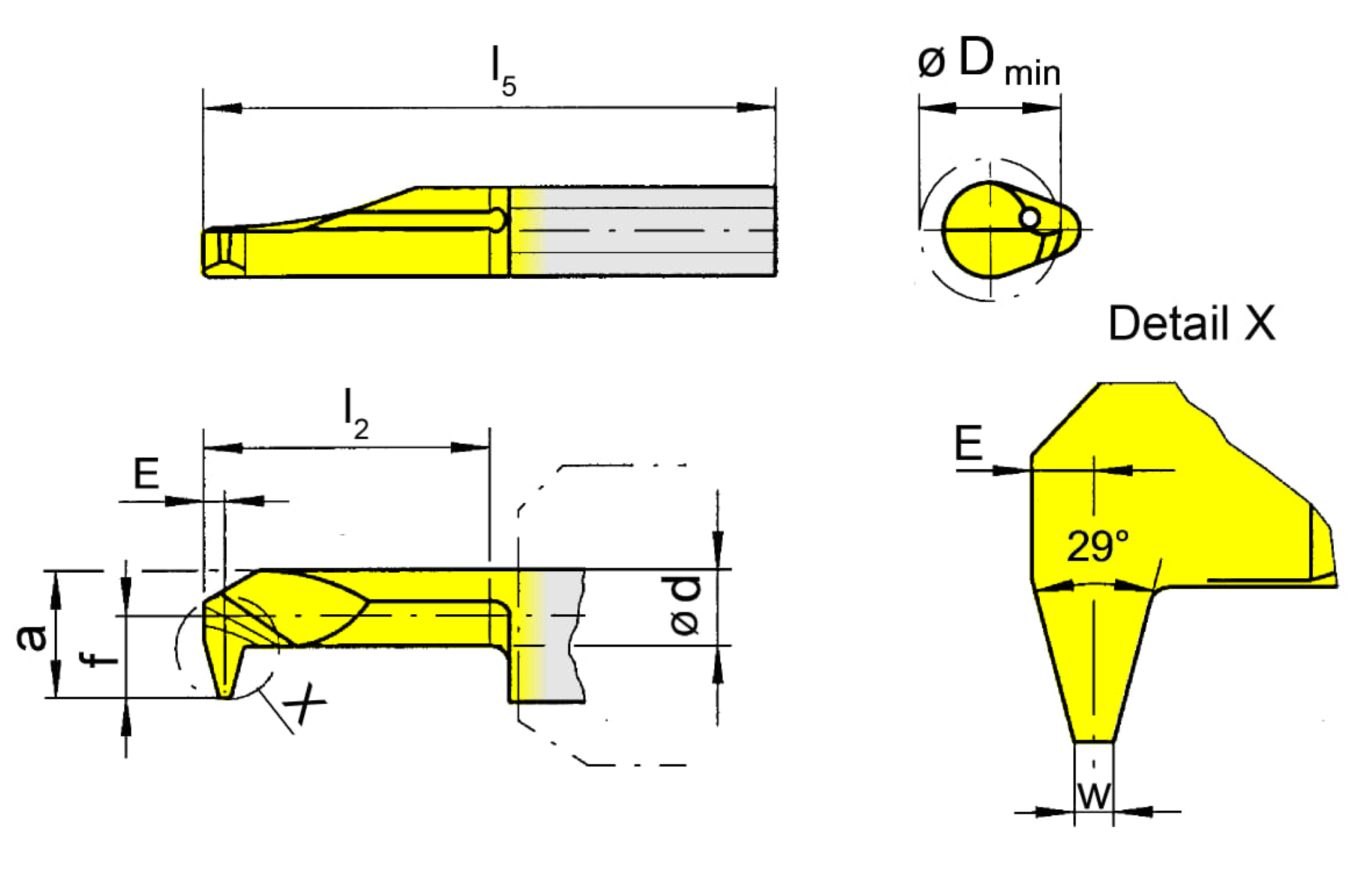

Smallest bore diameter (Dmin)
0.394 ˝
10 mm
tool-application
static
thread-per-inch
10
pitch-max-imp
0.1 ˝
2.54 mm
pitch-imp
0.1 ˝
2.54 mm
Setting length (E)
0.039 ˝
1 mm
Cutting insert width (a)
0.252 ˝
6.4 mm
Setting range radial (f)
0.157 ˝
4 mm
Neck diameter (d)
0.173 ˝
4.4 mm
Neck length (l2)
0.787 ˝
20 mm
Katalog_SSC
105125
width-blank-imp
0.276 ˝
7 mm
Cutting insert total length (l5)
1.378 ˝
35 mm
depth-of-groove-max-imp
0.067 ˝
1.7 mm
| Downloads | |
|---|---|
| RU105_AC10_3_7_20171121_213326278.STP | Download |
| Download all files | |
