RS274.0560.06.11 TH35
Recommended:
Also suitable for:
Material number RS27405600611TH35

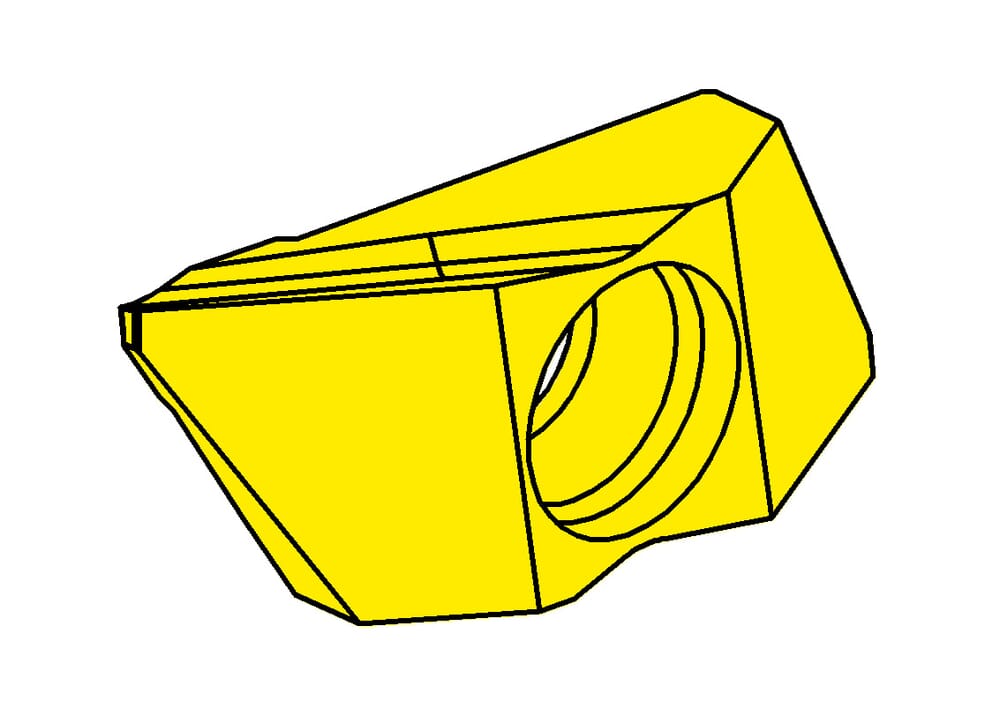

HORN Insert RS274.0560.06.11 TH35 for Turning
Cutting angle (γ)
15 °
us-cutting
Yes
cutting
1
tool-application
static
machining-direction-sap
right
Cancellation (a)
0.002 ˝
0.05 mm
Maximum stepover (ap) (ap)
0.236 ˝
6 mm
Width of groove (mm) (w)
0.02 ˝
0.5 mm
Corner radius (r)
0.004 ˝
0.1 mm
Katalog_SSC
274040R
| Downloads | |
|---|---|
| RS274_0560_06_11_TH35-DXF.DXF | Download |
| RS274_0560_06_11_TH35-STP.STP | Download |
| RS274_0560_06_11_TH35-ISO.XML | Download |
| RS274_0560_06_11_TH35-DIN.XML | Download |
| Download all files | |
