RNK234.0842.33.4.03.IK
Material number RNK234084233403IK

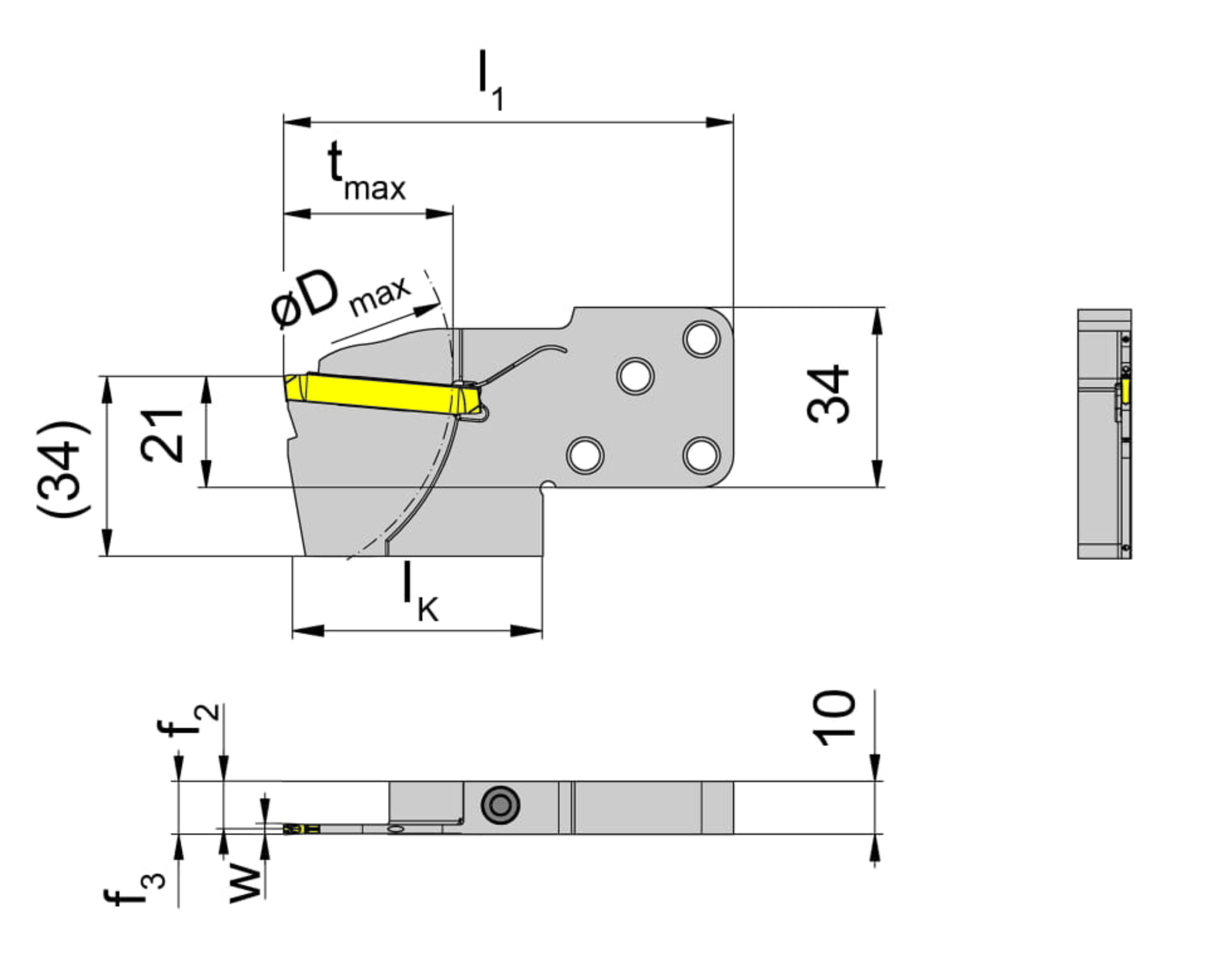

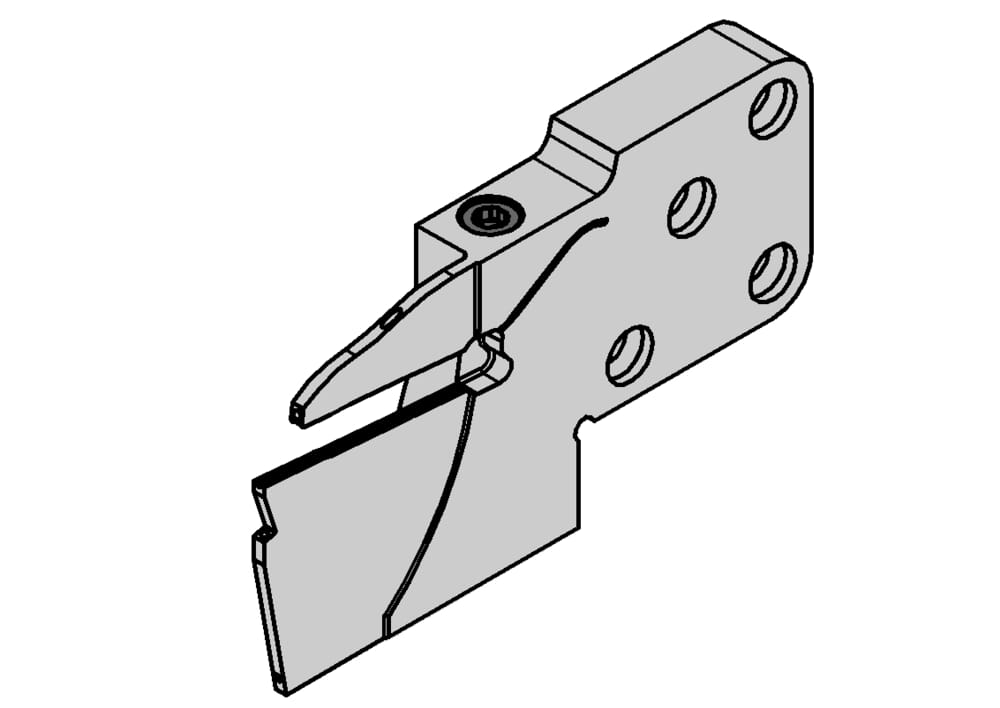

HORN Toolholder RNK234.0842.33.4.03.IK for Turning
Maximum depth of groove (tmax)
1.299 ˝
33 mm
tool-application
static
Width of groove (mm) (w)
0.118 ˝
3 mm
machining-direction-sap
right
Katalog_CCTMS
842002;842001
Katalog_CCTWS
23403
Maximum workpiece diameter (Dmax)
3.15 ˝
80 mm
Length of unit cassette to cutting edge (lK)
1.929 ˝
49 mm
Total length (including cutting insert) (l1)
3.346 ˝
85 mm
Adjustment dimension cutting center (f2)
0.335 ˝
8.5 mm
