RIK220.9513.16.IK
Material number RIK220951316IK

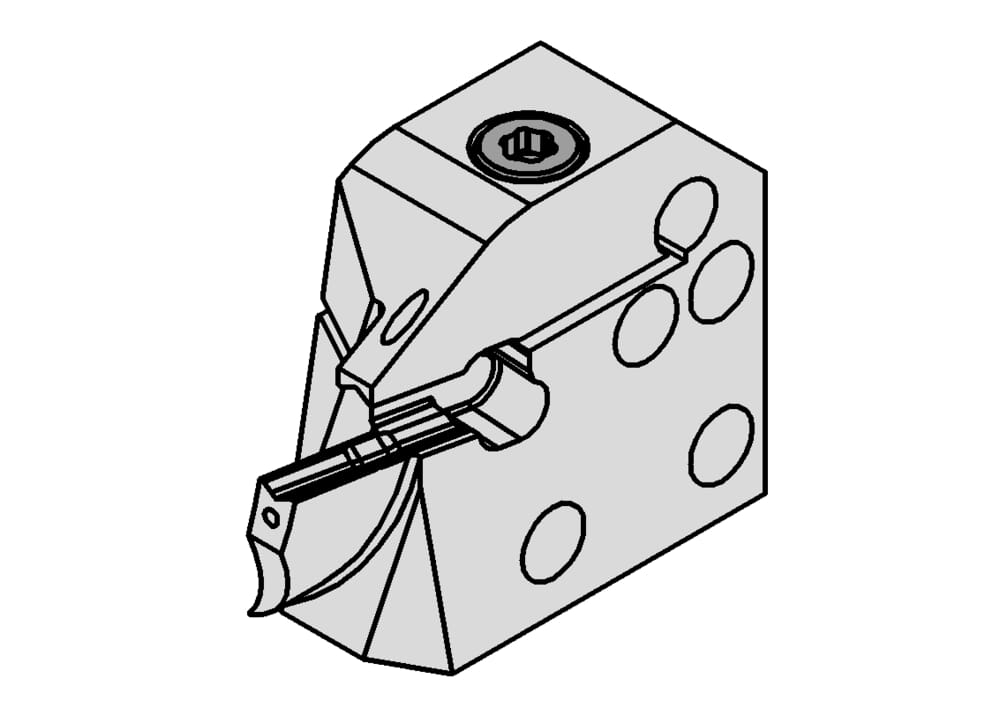

HORN Cartridge RIK220.9513.16.IK for Turning
tool-application
static
machining-direction-sap
right
Width of groove (mm) (w)
0.236 ˝
6 mm
Katalog_CCTMS
220001
Katalog_CCTWS
229050;229051
Width (b)
0.618 ˝
15.7 mm
Minimum starting outside diameter (Da min)
3.74 ˝
95 mm
Maximum starting outside diameter (Da max)
5.118 ˝
130 mm
Maximum depth of groove (tmax)
0.591 ˝
15 mm
Length of unit cassette to cutting edge (lK)
1.417 ˝
36 mm
Adjustment dimension cutting center (f2)
0.528 ˝
13.4 mm
| Downloads | |
|---|---|
| RIK220_9513_16_IK-DXF.DXF | Download |
| RIK220_9513_16_IK-STP.STP | Download |
| RIK220_9513_16_IK-ISO.XML | Download |
| RIK220_9513_16_IK-DIN.XML | Download |
