RIK220.7595.14.IK
Material number RIK220759514IK

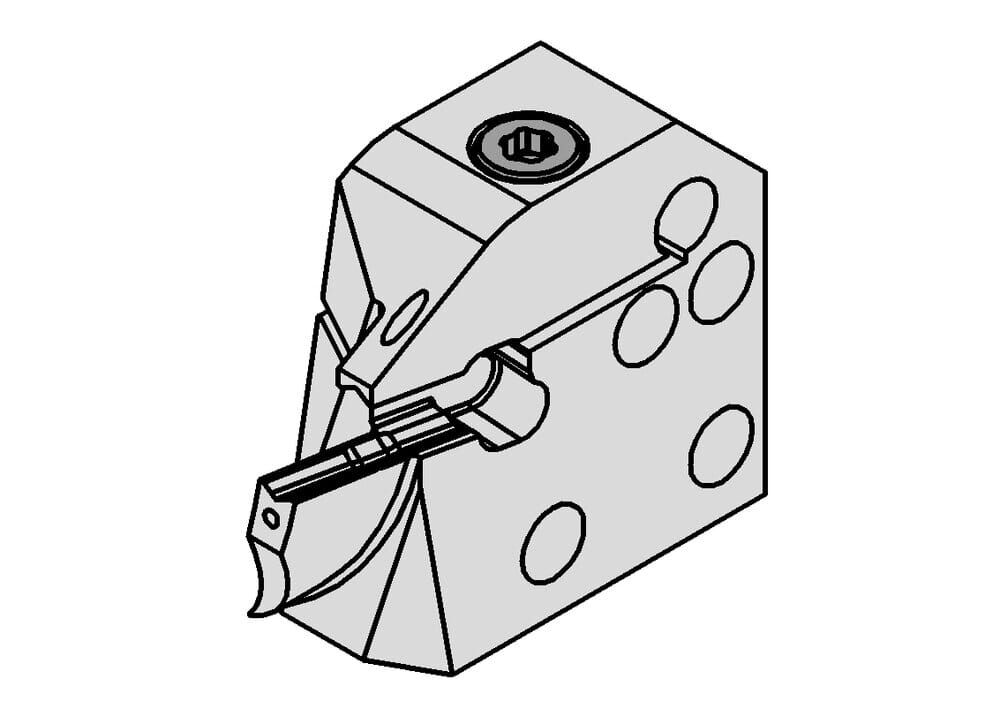

HORN Cartridge RIK220.7595.14.IK for Turning
tool-application
static
machining-direction-sap
right
Width of groove (mm) (w)
0.157 ˝
4 mm
Katalog_CCTMS
220001
Katalog_CCTWS
229040
Width (b)
0.618 ˝
15.7 mm
Minimum starting outside diameter (Da min)
2.953 ˝
75 mm
Maximum starting outside diameter (Da max)
3.74 ˝
95 mm
Maximum depth of groove (tmax)
0.591 ˝
15 mm
Length of unit cassette to cutting edge (lK)
1.417 ˝
36 mm
Adjustment dimension cutting center (f2)
0.567 ˝
14.4 mm
| Downloads | |
|---|---|
| RIK220759514IK.DXF | Download |
| RIK220_7595_14_20171121_175646594.STP | Download |
| Download all files | |
