RHF.N.321.H105.S5.IK
Material number RHFN321H105S5IK
HORN Backworking holder fixed for Star S5 with HORN 105 RHF.N.321.H105.S5.IK for Turning

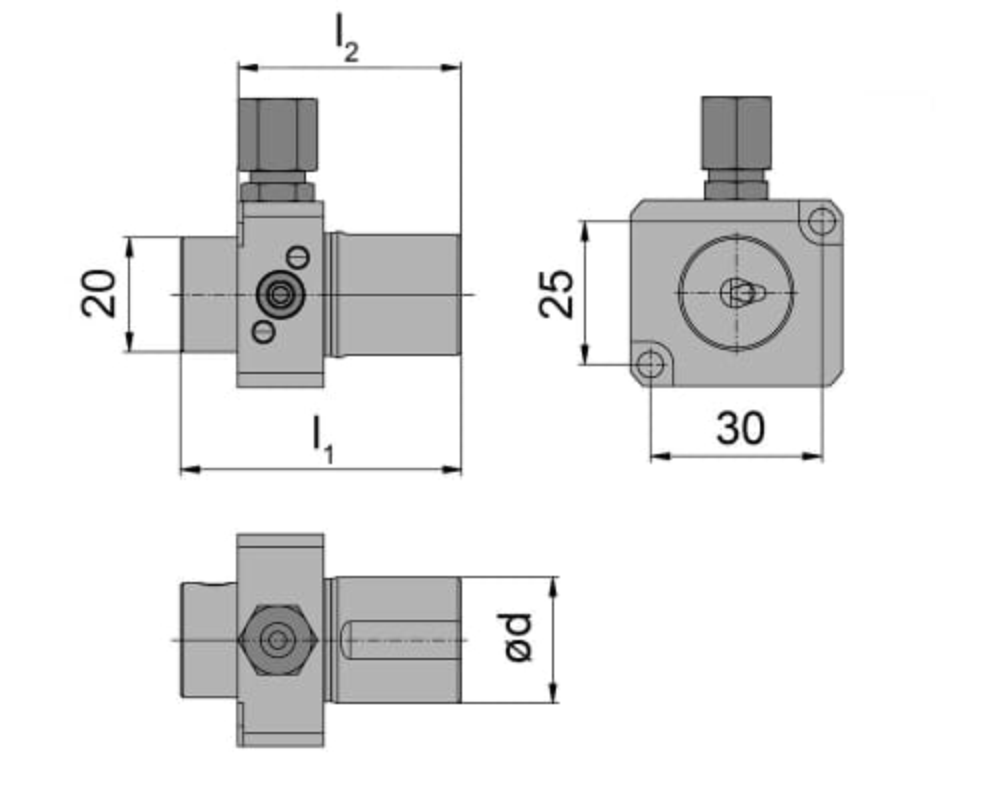

Length from locating face (l2)
1.535 ˝
39 mm
Neck diameter (d2)
0.787 ˝
20 mm
machining-direction-sap
right
Katalog_CCTWS
105123;105124;105125
tool-application
static
Clamping, shank diameter (d)
0.866 ˝
22 mm
Total length (without cutting insert) (l1)
1.929 ˝
49 mm
