RHF.N.104.H105.C2.IK
Material number RHFN104H105C2IK

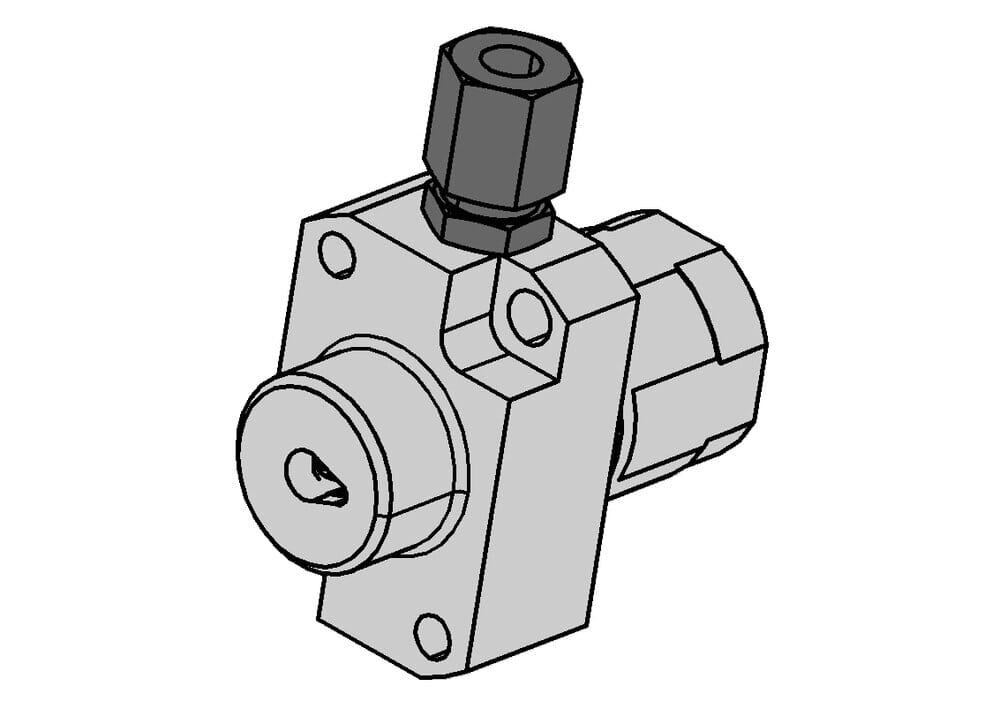

HORN Back working holder for HORN insert type 105 - Citizen C2 - RHF.N.104.H105.C2.IK for Turning

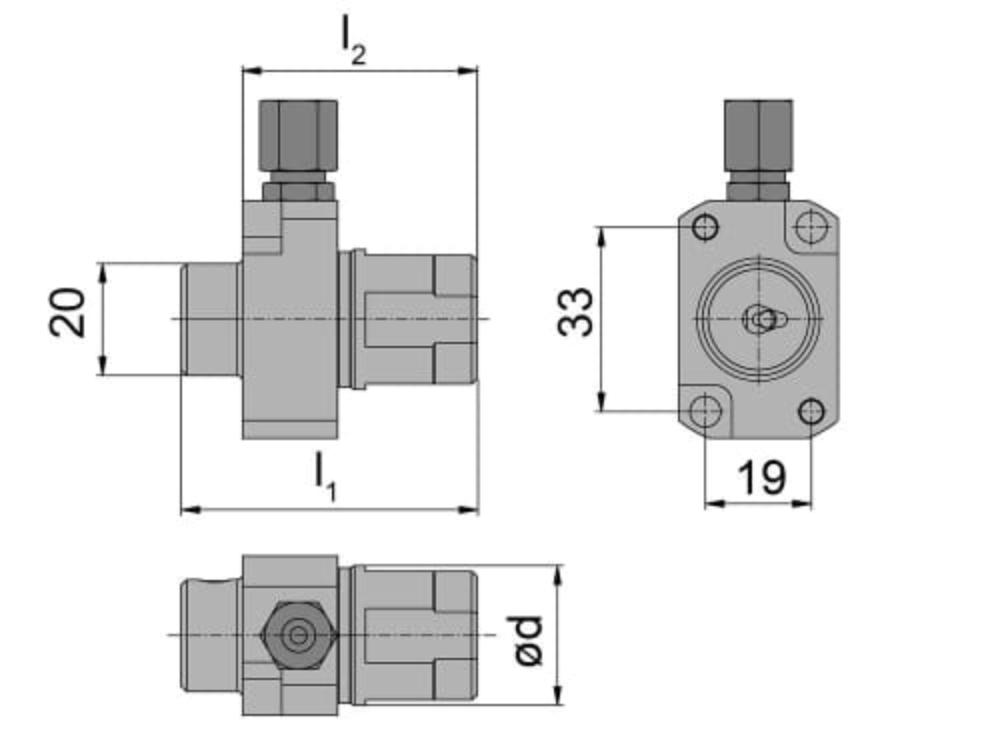

Length from locating face (l2)
1.654 ˝
42 mm
Neck diameter (d2)
0.787 ˝
20 mm
machining-direction-sap
right
Katalog_CCTWS
105123;105124;105125
tool-application
static
Clamping, shank diameter (d)
0.984 ˝
25 mm
Total length (without cutting insert) (l1)
2.087 ˝
53 mm
