RH66T.2020.08.20
Material number RH66T20200820

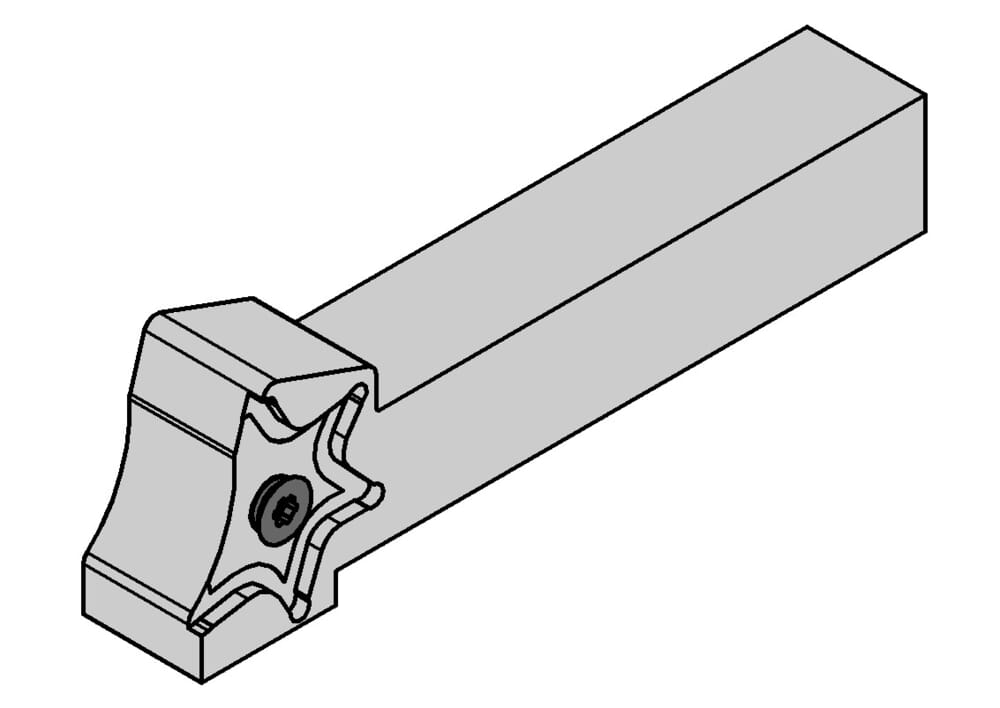

HORN Toolholder RH66T.2020.08.20 for Turning

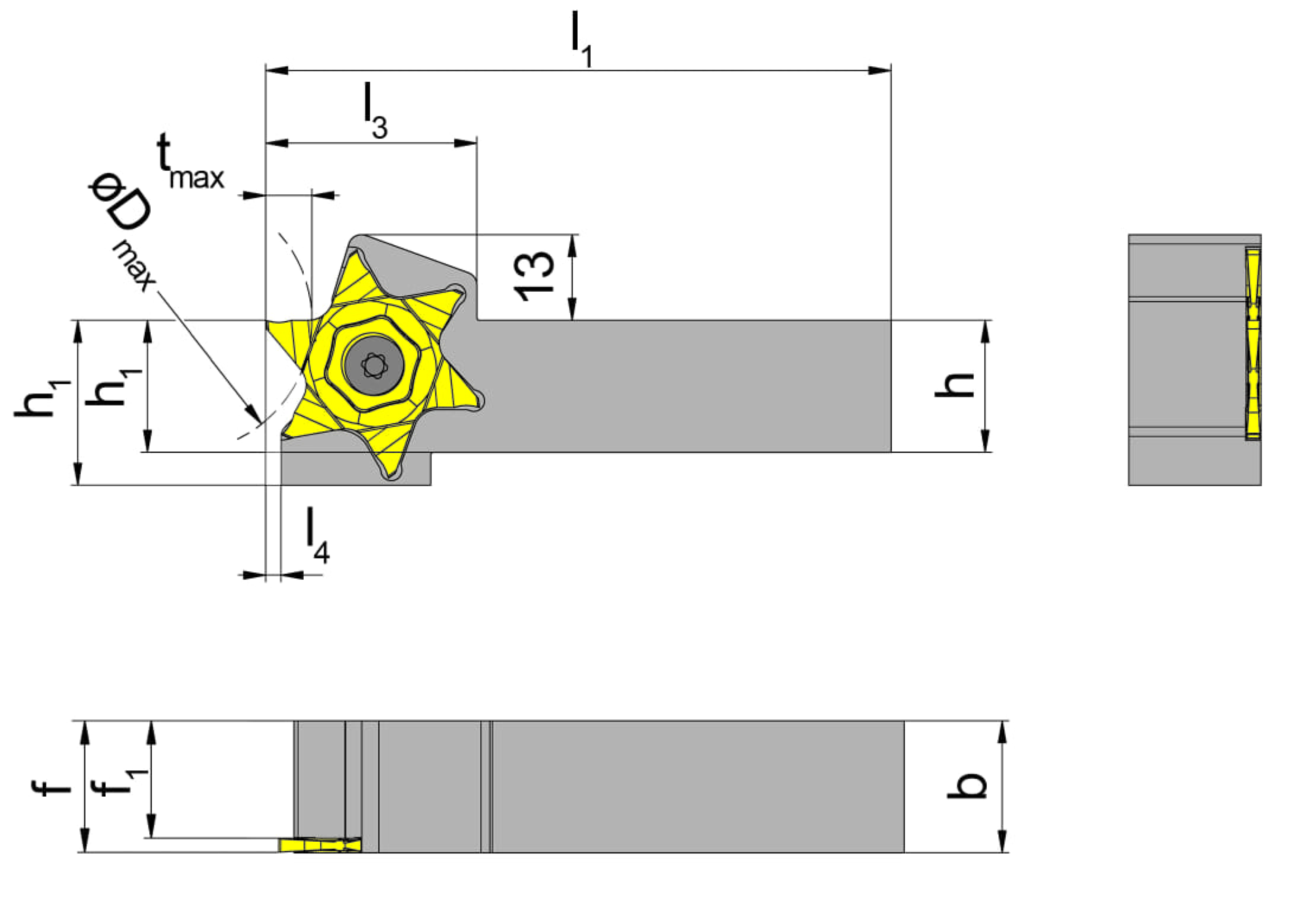

Cutting insert width (l4)
0.091 ˝
2.3 mm
tool-application
static
machining-direction-sap
right
Katalog_CCTWS
66T02N
Adjustment dimension locating face insert (f1)
0.681 ˝
17.3 mm
Shank width (b)
0.787 ˝
20 mm
Head length top (including cutting edge) (l3)
1.26 ˝
32 mm
Head length (including cutting edge) (l2)
0.984 ˝
25 mm
Adjustment dimension (formula) (f)
f1+w+a1
Peak height (h1)
0.787 ˝
20 mm
Shank height (h)
0.787 ˝
20 mm
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
