RH64T.1212.6.20.IK
Material number RH64T1212620IK

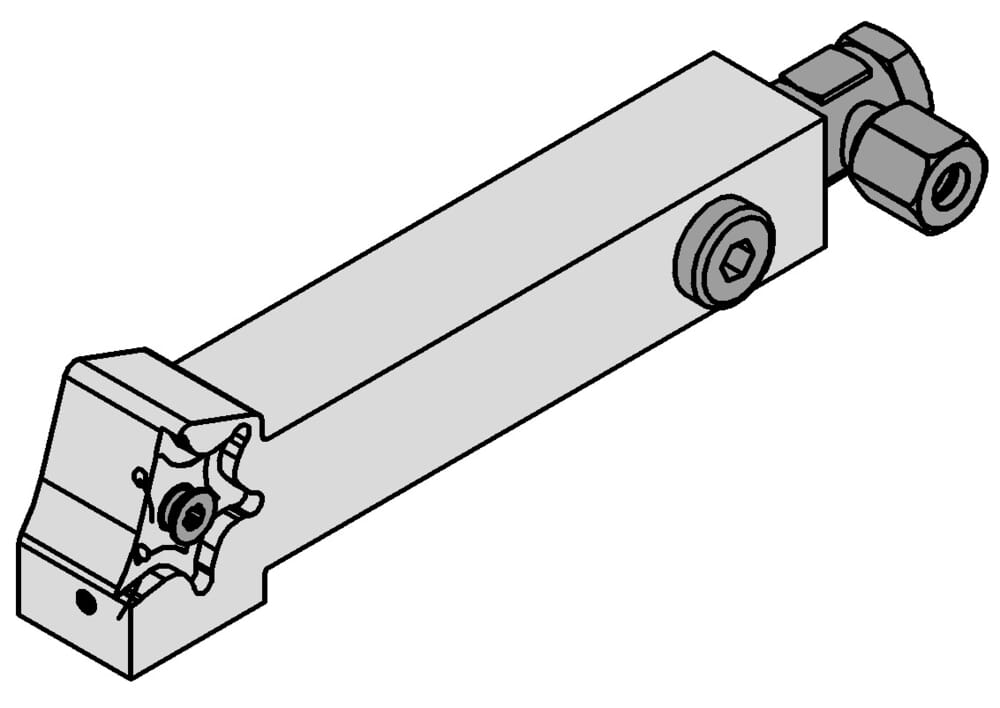

HORN Toolholder RH64T.1212.6.20.IK for Turning
Adjustment dimension locating face insert (f1)
0.366 ˝
9.3 mm
Katalog_CCTWS
64T02N
Adjustment dimension (formula) (f)
f1+w+a1
Cutting insert width (l4)
0.039 ˝
1 mm
machining-direction-sap
right
tool-application
static
us-cutting
No
Shank width (b)
0.472 ˝
12 mm
Head length top (including cutting edge) (l3)
0.965 ˝
24.5 mm
Head length (including cutting edge) (l2)
0.984 ˝
25 mm
Peak height (h1)
0.748 ˝
19 mm
length-overall-imp
4.921 ˝
125 mm
Shank height (h)
0.472 ˝
12 mm
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
