RH34T.1212.6.30.IK
Material number RH34T1212630IK

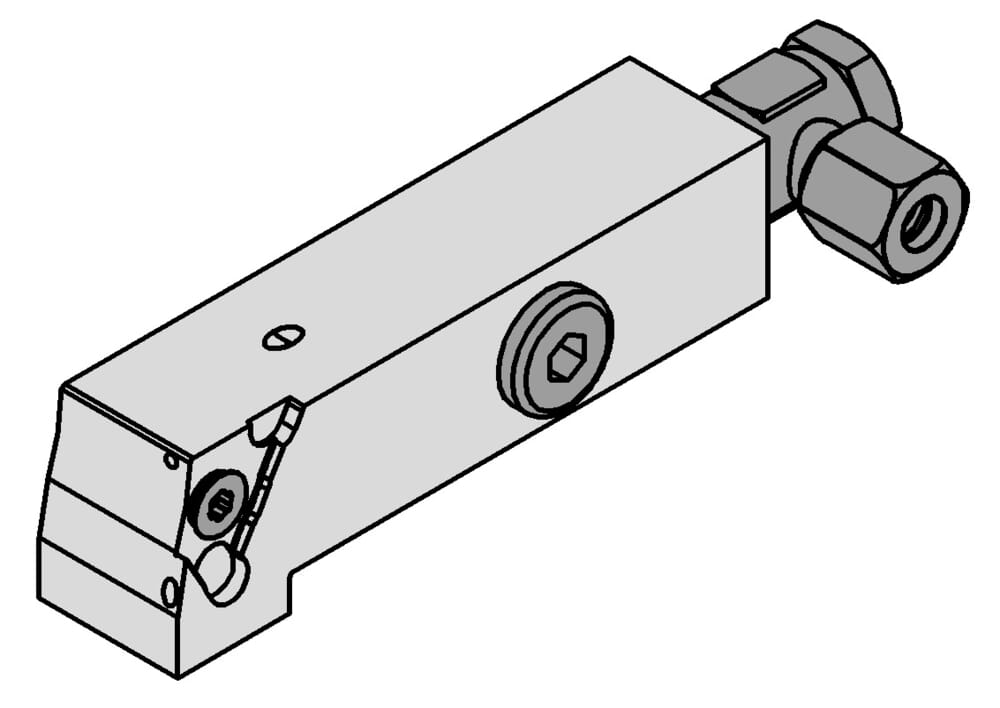

HORN Toolholder RH34T.1212.6.30.IK for Turning
Adjustment dimension (formula) (f)
f1+w-a1
Head length (including cutting edge) (l2)
0.748 ˝
19 mm
clamping-range-max-imp
0.157 ˝
4 mm
clamping-range-min-imp
0.119 ˝
3.01 mm
Katalog_CCTWS
34T03N
machining-direction-sap
right
tool-application
static
us-cutting
No
Adjustment dimension (f1)
0.483 ˝
12.26 mm
Total length (including cutting insert) (l1)
2.913 ˝
74 mm
Shank height (h)
0.472 ˝
12 mm
length-overall-met
2.913 ˝
74 mm
Maximum depth of groove (tmax)
0.256 ˝
6.5 mm
Maximum workpiece diameter (Dmax)
2.362 ˝
60 mm
Peak height (h1)
0.827 ˝
21 mm
Shank width (b)
0.472 ˝
12 mm
| Downloads | |
|---|---|
| RH34T_1212_6_30_IK-ISO.XML | Download |
| RH34T_1212_6_30_IK-DIN.XML | Download |
| RH34T_1212_6_30_IK-DXF.DXF | Download |
| RH34T_1212_6_30_IK-STP.STP | Download |
| Download all files | |
